Contemporary Use of Phytocosmetics in Three Districts from North-Eastern Algeria

Amel: Contemporary Use of Phytocosmetics in Three Districts from North-Eastern Algeria

Authors

INTRODUCTION

Natural products have been for ages the first and often the only, source option for most of human necessities: from food to medicinal preparation, passing through materials and even for beauty purposes.1 Over the past decade there has been an increasing interest in the use of natural products. Since 1978, the World Health Organization (WHO) extent of the use of plants in health ecosystem. WHO has estimated that 80% of the world population relies chiefly on traditional medical system.2 Ethnobotanical uses of plants is useful approach for targeting leads in the development of new drugs.3-4 In recent time, there is an increase of interest in the use of traditional cosmetics, because they are considered less toxic, effective with an antioxidant effect.5 Plants have been found to be useful for various skin ailments and cosmetics.6 In spite of the stimulation of the studies involving medicinal plants by WHO, many traditional uses may not be validated as safe and efficacious by scientific methods. In Algeria, most ethnobotanical research has focused on documenting the diversity and traditional uses of medicinal plants.7-29 However, no written pharmacopeia has been made. To our knowledge, in Algeria no ethnobotanical study of medicinal plants used for cosmetics purposes has been published. Therefore, this study was conducted to assess the importance of phytocosmetic uses in three states for north-eastern Algeria.

MATERIAL AND METHODS

Study area

The research survey was conducted in three districts: Skikda, Annaba, and El Tarf located in north-eastern Algeria (Figure 1). The Annaba region (36°53’59’’ North, 7°46’00’’ East) is a coastal town situated in the central part of north-eastern Algeria, located 533 km from Algiers (area=1439 km2). The El-Tarf region (36°75’58’’ North, 8°22’12’’) bordering Annaba district and located 589 km from Algiers (area=3339 km2). The area of Skikda (36°52’34’’ North, 6°54’33’’ East, area= 4026 km2) is located in the north-eastern Algeria, near Annaba, Guelma, Constantine district, and 471 km from Algiers.

Data collection and field study

Data were collected in 2015-2016 using semi-structured interviews. Three level of stratification were considered : the age, the sex and the education level. The characteristic of the population was provided from the data of National office of statistics.30

A total of 300 key informants were interviewed, five parameters have been analyzed: a) demographic characteristics including the age of the interviewed users, the sex, b) the level of education, c) the form of preparation used, d) the frequency of use, and e) the species cited.

Figure 1

Geographical position of the study area.

https://s3-us-west-2.amazonaws.com/jourdata/pj/PharmacognJ-9-762_img_1.jpg

Data analysis

Data collected for the study was analyzed using descriptive statistical methods. We have used a stacked bar chart to 100% to explore the specific distribution in each ditrict. The scientific name of species was recorded from the database online the plant List.31 The Relative Frequency of citation (RFC) was calculated, and showed the local value of every plant species, RFC was measured using this equation:

https://s3-us-west-2.amazonaws.com/jourdata/pj/PharmacognJ-9-762_img_6.jpg

where FC: number of informants quoting the cosmetic use of the plant species and N: total number of informants participating in the survey.32,33 Although, we have analyzed the correlation between the popularity of each species and the geographical characteristics by Pearson ‘s test, by SPSS 21.0 (Statistical Package for Social Sciences Inc., Chicago IL, USA,).

RESULTS

Demographic profile

We interviewed three hundred residents in three districts in the North-Eastern Algeria, each district contained 100 residents. Table 1 describes the age categories, the gender and the education level of the participants interviewed in this study.

Forms used in phytocosmetic applications and frequency of use

Six forms used in phytocosmetic were showed, and divided into three categories: solids (soap), semi-solids (creams) and liquids (lotions, hair oil, shampoos, and cleaning milk). The most representative forms of preparation was the soap with 67% of respondents, following by the hair oil (56%), the cream (49%) and the shampoo (35%), respectively. Although, the distribution of the preparation’s form used in phytocosmetics was investigated in each district. Based on a stacked bar chart to 100% (Figure 2), the soap was majoritary cited and used in Annaba (78%) and Skikda (74%), following by the hair oil in Annaba and the cream in Skikda district with percentage of 60% and 56%, respectively. However, in El Tarf district, the hair oil and the cream were predominant (68%, 63%). In addition, 60% of respondents indicated that the phytocosmetics are employed with the frequency of use once per day, or less frequently twice per day (13%), once a week (15%) and twice a week (12%).

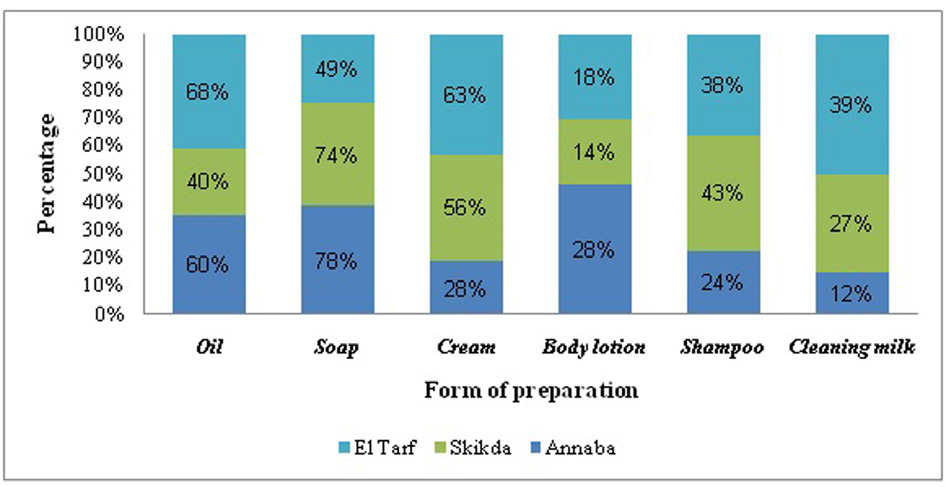

Figure 2

Distribution‘s form preparation of phytocosmetics in each district.

https://s3-us-west-2.amazonaws.com/jourdata/pj/PharmacognJ-9-762_img_2.jpg

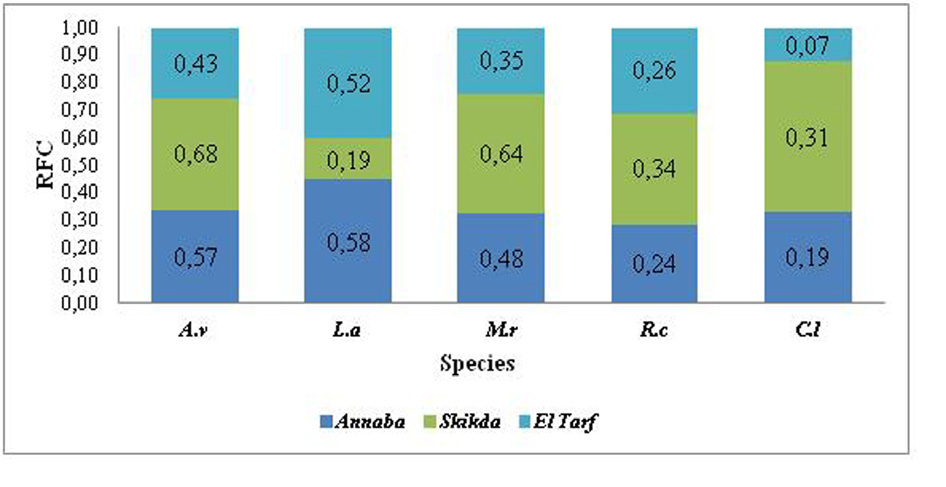

Figure 3

Distribution of RFC species cited in each district.

https://s3-us-west-2.amazonaws.com/jourdata/pj/PharmacognJ-9-762_img_3.jpg

Relative Frequency Citation of herbs used in phytocosmetic and Ethnobotany indices

Five medicinal species have been recorded by the participants sampled, for phytocosmetic applications: Aloe vera (L.) Burm.F., Matricaria recutita L. and Lavandula angustifolia Mill. , Ricinus communis L. and Citrus lemon (L.) Osbeck. The figure 3 illustrates the repartition of each species mentionned by informant in each district. Based on stacked bar chart to 100% A. vera, L. angustifolia, and M. recutita were almost used in Annaba and El Taref district, with RFC values of [0.57, 0.58, 0.48], v.s [0.43, 0.52, 0.35]. However, A.vera, M. recutita, R. communis were predominant [RFC=0.68, 0.64, 0.34] in Skikda district.

Correlation between climatic characteristics of the study area and the Form of preparation and RFC

The Table 1 showed that there is no correlation between the form of presentation and climatic factors (p<0.05), except for the soap. Indeed, it appeared that there is a positive correlation between the soap and the temparature (p=0.033). For the Relative Frequence Citation (RFC) of species, it revealed that there is no relation between the popularity of each species and climatic factors.

Table 1

Correlation between the climatic characteristics of the study area and form of preparation and RFC

Climatic characteristicsForm of preparation


CorrelationsOilSoapCreamBody lotionShampooCleaning milk
Precipitations (mm/year)Pearson Correlation0.864-0.9340.457-0.0040.0280.677
Sig. (bilateral)0.3360.2330.6980.9980.9820.526
Altitude (m)Pearson Correlation0.125-0.8510.984-0.7970.8120.996
Sig. (bilateral)0.9210.3520.1130.4130.3970.059
Temperature°Pearson Correlation-0.6660.999*-0.7100.312-0.335-0.872
Sig. (bilateral)0.5360.0330.4980.7980.7820.326
Climatic characteristicsRFC
CorrelationsA. veraM. recutitaL. angustifoliaR. communisC. lemon
Precipitations (mm/year)Pearson Correlation-0.9770.580-0.941-0.542-0.960
Sig. (bilateral)0.1370.6060.2190.6360.181
Altitude (m)Pearson Correlation-0.423-0.295-0.3030.339-0.359
Sig. (bilateral)0.7220.8090.8040.7800.766
Temperature°Pearson Correlation0.863-0.3000.7910.2550.826
Sig. (bilateral)0.3370.8060.4190.8360.381

[i] The correlation is significatif if P*< 0.05 (bilateral).

Table 2

Traditional home remedies used in phytocosmetics

Traditional recipesUse
1)Mash the strawberries, add the baking soda and mix until obtaining a consistent paste, apply this paste on the teeth, and keep for a few minutes then rinse the mouth with water.teeth
2) Mix turmeric spoon with a spoon of honey and a tablespoon chick + lemon juice+ a little almond oil. Mix the ingredients; apply the mask on the face for 10 minutes.Face-pack
3) A spoonful of oil of seeds Nigella sativa L. + a tablespoon of olive oil. Mix the ingredients, massage the face with this mixture and keep for an hour, wash the face with soap and warm water.Clear the complexion face
4) Three teaspoons of honey+ a half of teaspoon of cinnamon powder. Mix the ingredients and apply on pimples for 10 minutes, rinse with water.Face-pack against pimples
5) A teaspoon of honey+ olive oil + lemon juice+ dry chamomile flowers. Mix the ingredients apply on hair and rinse after.To lighten the color of hair
6) A tablespoon of baking soda, lemon juice. Mix the ingredients, heat the mixture and soak nails 5 minutes, rinse with warm water. Apply to face the liquid honey with few drops of lemon, hold for 20 minutes and remove with warm water.Clear the color of nails
7) Mix the yeast with fresh egg yolk. Mix two tablespoons of yeast with a little rose water. Apply to face and keep for 25 minutes.Moisturizing lotion
8) Mix two tablespoons of green clay with two spoons of corn oil but apply to face and keep for 15-20 minutes and remove with warm water.Anti-wrinkle
9) Two tablespoons of flour with a little raw milk. Keep for 15 minutes and remove with warm water.For irritated skin
10) Apply slices of cucumber on the face for 15 minutesTo clear ring under eyes
11) Mix one tablespoon of Rose water with one spoon of milk powder and honey. Keep it for 10 minutes and rinse with warm water.Scrub and clear the complexion face

DISCUSSION

Our results are in accordance with ethnobotanic survey described in tropical islands of Mauritus as well as in Italy, where the women are most frequent users of herbal cosmetics.34,35 In addition, as described in other study the most popular forms in topical preparations were dermatological cream, ointments and lotions.36

The highest relative citation frequency (RFC) was attributed to A. vera in the three district Skikda (0.68), Annaba (0.57), and El Tarf (0.43). Other ethnobotanical studies have identified A. vera in herbal remedies used in different countries. A. vera is one of the most widely used in herbal products for the treatment of various skin conditions and developed in industry.36 Although, A. vera was described in Nigeria as useful in the treatment of skin diseases facial cleansers and body cream.37,38 As far back as 3500 BCE, the use of A. vera was very ancient in times of an Egyptian.39 In Ayurveda medicine, A. vera is known as the treatment for skin diseases.40 For instance, A. vera leaves are usefull for skin burns.41,42 However, some studies reported the weak allergenic potential of A. vera.43,44 An additional, A. vera has been exhibited excellent pharmacological and cosmetic relevance and has been explored for skin hyperpigmentation problems.45 For instance, actually A. vera was formulated in an aqueous based gel system for topical therapy of wild acne vulagris.46 Furthermore, A. vera prepared gel was tested on the healing of skin wounds surgically induced in Wistar rats, and had showed promising effect on the wound healing process.47 A. vera gel was explored in cream cosmetics for skin against UV-induced aging.48,49 The efficacy of ointment preparation on bedsores was reported.50

Other plants have been also cited in our study, and were published as being herbs with potential cosmetic value. The Comission E approved the external use for skin and mucous membrane inflammations. The chamomile is popular for irritations of skin and mucosa in any part of the body and for eczema.51

Although, the popular use of Lavandula angustifolia (lamiaceae family) as a perfume was reported in Italy.52 The fruit juice of Citrus limon was beneficial for the skin and in the treatment for hair loss.53,54 It was also revealed that the extract juice is applied directly for dry skin and for burns.6-39-45 The seed oil of Ricinus communis was used as ointment for skin diseases.51 Indeed, Ricinoleic acid is used as a source of the oil for the manufacture of soap as a cream base.52

Taking into account previous studies on the traditional knowledge and practices in local cosmetics, it appeared that the use is recorded to botanical flora. Indeed, it was reported that the most species used as traditional cosmetic are lamiaceae in Egypt as well as in Morocco, consequence of its representation in local flora.53,54 In contrast; we could remark that in north-eastern Algeria there is no correlation between the local flora and the traditional use of phytocosmetics. For that purpose, aloe is infrequent in Algeria, mainly cultivated or subspontaneous on the coast, confused with Agave. In addition, aloe is represented in Algeria by Aloe succotrina Lam. known as «Sabr». Maghreb authors indicate the soucoutri (from Socotra) being the best, and term that names the plant and the juice extracted from its leaves. It should be noted that this species is used for the high blood pressure.12

In addition, eleven herbal preparations have been showed (Table 2), the drug was administrated along with honey, milk baking soda, flour, egg yolk. These supplement ingredients have been also reported in other ethnobotanical survey cited by Assamese people. It was also noticeable that the extract role of these materials is not clearly known.6

CONCLUSION

The importance of the traditional medicine in the preparation of natural phytocosmetics was highlighted in north-eastern Algeria. In this study, we didn’t evaluate the risk of phytocosmetics for users. In spite of these limitations, this is the first study on phytocosmetics in Algeria. A. vera was the species most cited in herbal cosmetics. Therefore, there is no correlation between the traditional use in cosmetics and the local flora. The local knowledge is representing by heritage orally transmitted orally. Further extensive ethnobotanical and ethnopharmacological study may lead to the discovery of plants used for cosmetics.

Acknowledgements

The author thank to Pr Geoffrey Cordell, for his valuable advices in the redaction of this article.

Notes

[2] Conflicts of interest CONFLICT OF INTEREST

Author declare that there is no conflict of interests regarding the publication of this paper.

ABBREVIATION USED

A.v

Aloe vera

L.a

Lavandula angustifolia

M.r

Matricaria recutita

R.c

Ricinus communis

C.l

Citrus limon

REFERENCES

1

Costa IM. Phytocosmetics–Where Nature Meets Well-Being. Journal of Phytocosmetics and Natural Ingredients. 2015;2:1

2

Farnsworth NR, Akerele O, Bingel AS, Soejarto DD, Guo Z. Medicinal plants in therapy. Bulletin of the world health organization. 1985;63(6):965

3

Cordell GA. Changing strategies in natural products chemistry. Phytochemistry. 1995;40(6):1585–612

4

Newman DJ, Cragg GM. Natural Products as Sources of New Drugs over the Last 25 Years⊥. Journal of natural products. 2007;70(3):461–77

5

Saha R. Cosmeceuticals and herbal drugs: Practical uses. International Journal of Pharmaceutical Sciences and Research. 2012;3(1):59–65

6

Saikia AP, Ryakala VK, Sharma P, Goswami P, Bora U. Ethnobotany of medicinal plants used by Assamese people for various skin ailments and cosmetics. Journal of Ethnopharmacology. 2006;106(2):149–57

7

Allali H, Benmehdi H, Dib MA, Tabti B, Ghalem S, et al. Phytotherapy of diabetes in west Algeria. Asian Journal of Chemistry. 2008;20(4):2701

8

Azzi R, Djaziri R, Latifa F, Sekkal FZ, Benmehdi H, et al. Ethnopharmacological survey of medicinal plants used in the treatment of diabetes melitus in the north western and south western Algeria. J Med Plants Res. 2012;6(10):2041–50

9

Benarba B, Ambroise G, Aoues A, Meddah B, Vazquez A, et al. Aristolochia longa aqueous extract triggers the mitochondrial pathway of apoptosis in BL41 Burkitt’s lymphoma cells. International Journal of Green Pharmacy. 2012;6(1):45

10

Benarba B, Meddah B, Aoues A, et al. Bryonia dioica aqueous extract induces apoptosis through mitochondrial intrinsic pathway in BL41 Burkitt’s lymphoma cells. Journal of ethnopharmacology. 2012;141(1):510–6

11

Benarba B, Meddah B, Tir Touil A, et al. Response of bone resorption markers to Aristolochia longa intake by Algerian breast cancer postmenopausal women. Advances in pharmacological sciences. 2014;

12

Benarba B, Belabid L, Righi K, amine Bekkar A, Elouissi M, et al. Ethnobotanical study of medicinal plants used by traditional healers in Mascara (North West of Algeria). Journal of ethnopharmacology. 2015;175:626–37

13

Benarba B. Ethnomedicinal study of Bryonia dioica, a plant used as anti-breast cancer herbal therapy in North West Algeria. Journal of Medicinal Herbs and Ethnomedicine Vol. 2015;1:113

14

Houcine B, Rachid A, Rabah D, Farid L, Nabila B, et al. Effect of saponosides crude extract isolated from Citrullus colocynthis (L.) seeds on blood glucose level in normal and streptozotocin induced diabetic rats. Journal of Medicinal Plants Research. 2011;5(31):6864–8

15

Boudjelal A, Henchiri C, Siracusa L, Sari M, Ruberto G, et al. Compositional analysis and in vivo anti-diabetic activity of wild Algerian Marrubium vulgare L. infusion. Fitoterapia. 2012;83(2):286–92

16

Boudjelal A, Henchiri C, Sari M, Sarri D, Hendel N, et al. Herbalists and wild medicinal plants in M’Sila (North Algeria): An ethnopharmacology survey. Journal of ethnopharmacology. 2013;148(2):395–402

17

Amel B. Traditional treatment of high blood pressure and diabetes in Souk Ahras District. Journal of Pharmacognosy and Phytotherapy. 2013;5(1):12–20

18

Bouzabata A, Bazzali O, Cabral C, Gonçalves MJ, Cruz MT, Bighelli A, et al. New compounds, chemical composition, antifungal activity and cytotoxicity of the essential oil from Myrtus nivellei Batt. & Trab., an endemic species of Central Sahara. Journal of ethnopharmacology. 2013;149(3):613–20

19

Bouzabata A, Cabral C, Gonçalves MJ, Cruz MT, Bighelli A, et al. Myrtus communis L. as source of a bioactive and safe essential oil. Food and Chemical Toxicology. 2015;75:166–72

20

Chermat S, Gharzouli R, et al. Ethnobotanical study of medicinal flora in the North East of Algeria-An empirical knowledge in Djebel Zdimm (Setif). J Mater Sci Eng. 2015;5:50–9

21

Halmi S, Benlaksira B, Bechtarzi K, Berouel K, Serakta M, et al. Ethnobotanical study of medicinal flora in the North East of Algeria-An empirical knowledge in Djebel Zdimm (Setif). J Mater Sci Eng. 2015;5:50–9

22

Hammiche V, Maiza K. Traditional medicine in Central Sahara: pharmacopoeia of Tassili N’ajjer. Journal of ethnopharmacology. 2006;105(3):358–67

23

Kambouche N, Merah B, Derdour A, Bellahouel S, Benziane MM, et al. Étude de l’effet antidiabétique des saponines extraites d’Anabasis articulata (Forssk) Moq, plante utilisée traditionnellement en Algérie. Phytothérapie. 2009;7(4):197–201

24

Maiza K, Hammiche V, Bounaga N, Brac de la Perrière RA. Inventaire des plantes médicinales de trois régions d’Algérie. Actes du Colloque International hommage à Jean PernèsComplexes d’espèces, flux de gènes, ressources génétiques des plantes. Paris: 1992. p. 631–33

25

Maiza K, Brac de la Perrière RA, Hammiche V. Traditional Saharian pharmacopoeia. Acta Hortic. 1993;332:37–42

26

Maiza K, Brac de la Perrière RA, Hammiche V. InPharmacopée traditionnelle saharienne: Sahara septentrional2nd proc of European Conf on Ethnopharmacology & 11th Int Conf Of Ethnomedecine. Heidelberg, France: 1993. p. 169–171

27

Maiza K, Brac de la Perrière RA, Hammiche V. Pharmacopée traditionnelle Saharienne. Revue Méd. Pharm. Afr. 1995;9:71–5

28

Meliani N, Dib ME, Allali H, Tabti B. Hypoglycaemic effect of Berberis vulgaris L. in normal and streptozotocin-induced diabetic rats. Asian Pacific journal of tropical biomedicine. 2011;1(6):468–71

29

Ziane L, Lazouni HA, Moussaoui A, Hamidi N. Ethnopharmacology and phytochemical screening of bioactive extracts of Limoniastrum Feei (plombagenaceae). Asian Journal of natural and applied sciences. 2013;2(1):1

30

ONS.dz. Alger: Office National des Statistiques, Population RGPH. 2008 [uptated 2016 December 1]Available from: www.ons.dz/IMG/pdf/pop9_national.pdf. 2(1):1

31

http://www.theplantlist.org/.

32

Mahomoodally MF, Ramjuttun P. A quantitative ethnobotanical survey of phytocosmetics used in the tropical island of Mauritius. Journal of Ethnopharmacology. 2016;193:45–59

33

Vitalini S, Iriti M, Puricelli C, Ciuchi D, Segale A, Fico G. Traditional knowledge on medicinal and food plants used in Val San Giacomo (Sondrio, Italy)—An alpine ethnobotanical study. Journal of Ethnopharmacology. 2013;145(2):517–29

34

Corraza M, Virgili A, Toni G, Minghetti S, Tiengo S, et al. Level of use and safety of botanical products for itching vulvar dermatoses Are patch tests useful? Contact Derm. 2016;74(5):289–94

35

Talal A, Natsheh FM, et al. Plants used in cosmetics. Phytotherapy Res. 2003;17(9):987–1000

36

Fred-Jaiyesimi A, Ajibesin KK, Tolulope O, Gbemisola O, et al. Ethnobotanical studies of folklore phytocosmetics of South West Nigeria. Pharmaceutical biology. 2015;53(3):3138

37

Fathima A, Sujith V, Jagannath P, Akash M, et al. General review on herbal cosmetics. IJDFR. 2011;2(5):140–65

38

Datta HS, Paramesh R, et al. Trends in aging and skin care: Ayurvedic concepts. J Ayurveda Integr Med. 2010;1:110–13

39

Carrió E, Vallès J, et al. Ethnobotany of medicinal plants used in Eastern Mallorca (Balearic Islands, Mediterranean Sea). Journal of Ethnopharmacology. 2012;141(3):1021–40

40

Lall N, Kishore N, et al. Are plants used for skin care in South Africa fully explored? Journal of ethnopharmacology. 2014;153(1):61–84

41

Ferreira M, Teixeira M, Silva E, Selores M. Allergic contact dermatitis to Aloe vera. Contact dermatitis. 2007;57(4):278–9

42

Gomes J, Pereira T, Vilarinho C, Duarte MD, Brito C. Contact dermatitis due to Centella asiatica. Contact dermatitis. 2010;62(1):54–5

43

Lall N, Kishore N. Are plants used for skin care in South Africa fully explored? Journal of ethnopharmacology. 2014;153(1):61–84

44

Herbal Medicine Expanded Commission E Monographs, 2000. American Botanical Council: file:///C:/HerbalMed2/Monograph/ChamomileflowerGerman.html. accessed 01.12.2016

45

Pieroni A, Quave CL, Villanelli ML, Mangino P, Sabbatini G, et al. Ethnopharmacognostic survey on the natural ingredients used in folk cosmetics, cosmeceuticals and remedies for healing skin diseases in the inland Marches, Central-Eastern Italy. Journal of Ethnopharmacology. 2004;91(2):331–44

46

Bhaskar G, Arshia S, Priyadarshini SR. Formulation and evaluation of topical polyherbal antiacne gels containing Garcinia mangostana and Aloe vera. Pharmacognosy magazine. 2009;5(19):93

47

Khan AW, Kotta S, Ansari SH, Sharma RK, Kumar A, Ali J. Formulation development, optimization and evaluation of aloe vera gel for wound healing. Pharmacognosy magazine. 2013;(Suppl 1):S6.

48

Ashawat MS, Banchhor M, Saraf S, Saraf S. Herbal cosmetics:” trends in skin care formulation”. Pharmacognosy Reviews. 2009;3(5):72–9

49

Kappor S, Saraf S. Efficacy study of sunscreens containing various herbs for protecting skin from UVA and Sunrays. Phcog Mag. 2009;5(19):238–48

50

Matsuo K, Yagi A, Kabbash A. Case reports of bedsores using Aloe vera gel powder with high molecular weight. Pharmacognosy Research. 2009;1(3):136

51

Linhares JF, Ming LC, Pinheiro CU, Rodrigues MI. Ethnobotany approach taperas of maroon communities of Alcántara, Maranhão, Brasil. Int J Pyhtocosmet Nat Ingred. 2015;2(3):1–3

52

Heinrich M, Barnes J, Gibbons S, Williamson EM. Natural Product Chemistry. In: Kinghorn DA, editor. Fundamentals of pharmacognosy and phytotherapy, 2th edChurchill Linvingstone; Elsevier: 2012. p. 67

53

Elansary HO, Mahmoud EA, Shokralla S, Yessoufou K. Diversity of Plants, Traditional Knowledge, and Practices in Local Cosmetics: A Case Study from Alexandria, Egypt. Economic botany. 2015;69(2):114–26

54

Khabbach A, Libiad M, Ennabili A, Bousta D. Medicinal and cosmetic use of plants from the province of Taza, Northern Morocco. Boletín Latinoamericano y del Caribe de Plantas Medicinales y Aromáticas. 2012;11(1):46–60

ABOUT AUTHORS

A. Bouzabata: Is research professor in the faculty of Medecine, Pharmacy Department, Badji-Mokhtar University, Annaba. Algeria.

https://s3-us-west-2.amazonaws.com/jourdata/pj/PharmacognJ-9-762_img_5.jpg
