Enteric Delivery of Diclofenac Sodium through Functionally Modified Poly(acrylamide-grafted-Ghatti gum)-based pH-sensitive Hydrogel Beads: Development, Formulation and Evaluation

Moin, Hussain, and Gowda: Enteric Delivery of Diclofenac Sodium through Functionally Modified Poly(acrylamide-grafted-Ghatti gum)-based pH-sensitive Hydrogel Beads: Development, Formulation and Evaluation

Authors

INTRODUCTION

Diclofenac sodium a non-steroidal anti-inflammatory drug (NSAID) was widely used to relieve pain, swelling, inflammation, joint stiffness/disorders caused by arthritis and musculoskeletal disorders. It is readily absorbed from gastrointestinal tract (GIT) and has a shorter half-life of about 1.2-2 h. When administered orally, it causes certain gastric side effects such as gastric irritation, ulceration, haemorrhage, stomach pain, heart burn, nausea, vomiting, diarrhoea, indigestion, dizziness, vertigo.etc. The shorter biological half-life and associated side effects make Diclofenac sodium a suitable candidate for sustained release formulations. Oral controlled release multiple-unit dosage forms such as beads, pellets and microparticles are considered as attractive alternative to single-unit dosage forms. As they tend to spread uniformly, avoid the differences in gastric emptying and transit rates, and thereby release the drugs more uniformly throughout the GIT.1,2 On chronic dosing of a drug multiple unit dosage forms prevents the exposure of organs to higher drug concentrations unlike single unit dosage forms.3,4 They are more preferred owing to their higher degree of dispersion in GI tract, increased bioavailability, decreased dosing frequency, and reduced risk of toxicity. Moremore, local unwanted effects are eliminated when drug is embedded in a gastro-resistant polymer. This is particularly true in case of NSAIDs, which have often been associated with GIT problems.5,6

Various techniques have been reported for the preparation of multiple-unit dosage forms: extrusion/- spheronization, solution or suspension layering onto sugar beads, spray-drying, liposome entrapment, coacervation, cross-linking, polymerization, single or double emulsion technique, freeze drying, emulsion/solvent evaporation, hot melt extrusion and cryo pellatalization.7 Typically, microparticles in dosage forms have been prepared by emulsion/solvent evaporation technique by means of liquid paraffin, followed by rigidization and washing with large volumes of organic solvents. However, this research work avoids the use of hazardous solvents, and this process is economical, flexible and produces beads of superior quality quality. Several synthetic polymers have been used to formulate multiple-unit dosage forms. In the present decade research mainly focuses on the use and advancement of multi-unit controlled release systems using hydrophilic biopolymers, because of their abundancy and sensitivity towards modifications.

Hydrogel is a cross-linked 3D network of hydrophilic polymers which can swell without dissolving in water. The hydrogels that trigger the release of drug in response to various stimuli are known as intelligent/smart polymers and are gaining importance in drug delivery in the present scenario as they can dictate where a drug has to be released.8 The pH-sensitive hydrogels possess pendant acidic or basic groups that either accept or donate protons in response to changes in environmental pH. As the pH of environment increases swelling of hydrogels containing acidic groups increases gradually with respect to the pH changes. Biopolymers are modified via grafting by monomer units. Graft copolymerization enhances the properties of natural and synthetic polymers and gives them a new property. On grafting, the host polymer attains some of the essential properties of the monomer used for grafting. The grafting of polyacrylamide (PAAM) upon the Ghatti gum is of immense importance to fabricate new materials merging the properties of both natural and synthetic polymers. Added advantage of this graft copolymer is that this could be effortlessly converted into the ionic form through the hydrolysis of amide groups resulting in pH sensitive copolymer.9

Gum ghatti (GG) or Indian gum is a non-starch polysaccharides, originating from India and obtained from the main species Anogeissus latifolia (Combretaceae, Myrtales), a large deciduous tree found in dry areas.10 Basing on the tests of toxicity, mutagenicity, and teratogenicity Regulatory status of GG in USA is considered as “Generally Recognized as Safe” (GRAS) since 1976. It was found to have enormously complex arrays of neutral sugar units glyceraldehyde 3-phosphate (Galp), Arabino furanose (Araf), and Arabino pyranose (Arap) and glucuronic acid (GlcA), attached to a molecular core of alternating -d-GlcA and d-Mannose residues, the former was linked through O-4 and the latter through O-2. (1,3)- and (1,6)- linked galactose units dwell in side chains, and the structure is dense by the presence of d-Mannose residues as double branch-points.

Although a wide range of synthetic and natural polymers have been utilised to develop oral controlled release multiple-unit dosage forms, to the best of our knowledge, there is no previous work reported on the use of functionally modified pH sensitive Gum Ghatti beads for Diclofenac sodium delivery to target intestine. The objective of the present research was to explore the feasibility of using functionally modified pH-sensitive Gum Ghatti beads for targeting Diclofenac sodium to the intestine. In this study, PAAM was grafted on to the backbone of ghatti gum and consequently, the -CONH2 groups of PAAM were converted to –COOH groups in order to obtain a pH-sensitive copolymer. Diclofenac sodium loaded pH-sensitive copolymeric beads were evaluated in vitro for drug release characteristics.

MATERIAL AND METHODS

Ghatti Gum (GG) was purchased from Sigma Aldrich, Mumbai, India. Ceric ammonium nitrate (CAN) and Polyacrylamide (PAAM) were obtained from Merck Specialties Pvt. Ltd, Mumbai, India. Diclofenac Sodium was obtained as gift sample from Sigma Aldrich, Mumbai. Acetone (density = 0.789–0.791 g/mL) was bought from Loba Chemie, Mumbai, India. All other chemicals and reagents critical for the synthesis and evaluations were procured from Merck Specialties Pvt. Ltd (Mumbai, India), unless otherwise specified. Throughout the experiment, Millipore water was used.

Preparation of polyacrylamide grafted GG

The graft copolymer obtained from PAAM and GG was prepared by free radical induced, microwave-assisted copolymerization method.11 Precise amount of polyacrylamide (Table 1) was mixed with 30 ml of water and added to aqueous dispersion of GG (0.0079 g/ml) and stirred for about 1 h. A specified amount of CAN (Table 1) was dissolved in 30 ml of water and mixed in the previous dispersion of gum and monomer. The dispersion was irradiated by means of microwave (laboratory scientific microwave system, Catalyst systems, India) at 480 W for different time periods using alternate one minute heating and one minute cooling cycles. The irradiated samples were then left all night at ambient temperature and then precipitated using acetone. The precipitate was further washed with ethanol to ensure that the precipitate is devoid of unreacted acrylamide monomer and homopolymer. The prepared copolymer was vacuum dried at 400C until a constant weight is attained and then converted to fines. The Grafting Efficiency (GE) and Percentage Grafting were calculated using following equations:

(1)
GE(%)=w1w0w2×100https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e001.jpg
(2)
%G=w1w0w0×100https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e002.jpg

Where, W0, W1 and W2 denote the weight of GG, copolymer and PAAM, respectively. Various reaction parameters were optimized as a function of percentage grafting. Reaction time, temperature and amount of initiator were optimized with respect to percentage grafting (Pg), whereas concentration of PAAM was optimized with respect to percentage swelling (Ps).

Full factorial design

Factorial design is a broadly used experimental design comprising of different levels and factors.12 Different levels of a given factor are combined with all levels of every other factor in the experiment. In the present study, two-level, three-factor, full factorial design (comprising of 8 batches) was used for the optimization of polyacrylamide grafting onto GG. The amount of polyacrylamide, ceric ammonium nitrate and microwave exposure time were selected as independent variables and the percentage of nitrogen (% N) in the grafted gum, its viscosity and swelling behaviour were selected as responses.

The % N was expected to ascend in copolymer due to the presence of high nitrogen content in polyacrylamide which is grafted onto the pure GG. The grafting of amide onto GG was envisaged by changes in viscosity, swelling behaviour and hydrophilicity of the pure gum. Each independent variable was examined at two levels, high level (+1) and low level (-1). Polynomial models were produced for all the response variables through Multiple Linear Regression Analysis (MLRA) approach. The results of responses generated using the experimental designs were analyzed by factorial models using Design Expert software (Version 7.0.0, Stat-Ease, Inc., Minneapolis).

Table 1

Synthesis details of acrylamide grafted GG

Batch codeAmount of GG (g)Amount of CAN (mg)Irradiation time (min)Amount of PAAM (g)% GE%Grafting (%G)
G113005.05.080.086102
G213005.01096.423444
G313002.55.089.468532
G413002.51099.026921
G511505.05.071.238520
G611505.01088.153840
G711502.55.078.304720
G811502.51090.382621
GG------

Alkaline hydrolysis of GG-g-PAAM copolymer

Optimised GG-g-PAAM copolymer (2 g) was dissolved in a precise volume of NaOH solution (0.9M) and stirred at 75°C for 60 min in a water bath. At the completion of reaction, the solution was cooled and poured in excess methanol. The hydrolyzed copolymer was separated by filtration, washed thoroughly with methanol and dried overnight at 50°C.13 The feasible reaction scheme is shown in Figure 1.

Figure 1

Proposed mechanistic pathway for the synthesis of pH-sensitive PAAM-g-GG copolymer.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g001.jpg

Characterization of the copolymer

Fourier transform infrared spectroscopy (FTIR)

FTIR was performed to characterize the presence of specific functional groups in the material. 0.5–1 mm thick films of GG and all copolymers (G1-G8) were prepared and analyzed by FTIR using transmittance mode.14 Infrared spectra were obtained in the range of wave numbers from 4000 to 650 cm-1 all through 64 scans, under 2 cm-1 resolution (FTIR-8400S, Shimadzu, Japan).

Elemental analysis

The elemental analysis of GG, all the copolymers (GG-g-PAAM 1 to GG-g-PAAM 8) and hydrolysed grafted gum was performed by using a PCHN 2400 micro-analyser (Perkin Elmer, USA). The carbon, hydrogen and nitrogen contents were calculated.

Differential scanning calorimetry (DSC)

DSC thermograms of GG and different batches of GG-g-PAAM were obtained using DSC-60 (Shimadzu, Japan) by heating the samples from 10°C to 300°C under nitrogen purge (50 ml/min) at a heating rate of 10°C/min.

Scanning electron microscopy (SEM)

The morphology of the GG, GG-g-PAAM and P5 beads was examined using SEM system (LEO 435 VP, CFTRI, Mysuru). The samples were gold coated to enhancethe conductivity of the electron beam. An accelerating voltage of 10 kV and a working distance of 12 mm were used. The coated beads were observed under scanning electron microscope (SEM) (LEO 435 VP, CFTRI, Mysuru) at the requisite magnification at room temperature.

Intrinsic viscosity measurement

Viscosity of the polymer solutions was measured using programmable Brookfield viscometer (Model: Brookfield CAP-2000+ viscometer, Brookfield Engineering Labs, Inc., USA) at 32.7°C and at neutral pH.15 The time of flow for solutions was measured at four different concentrations (0.1%, 0.05%, 0.025% & 0.0125%). From the time of flow of polymer solutions (t) and that of the solvent (t0, for distilled water), relative viscosity (ηrel = t/t0) was obtained. Specific viscosity (ηsp), reduced viscosity (ηred) and inherent viscosity (ηinh) were mathematically calculated as shown in equation 3, 4 and 5.

(3)
ηsp=ηrel1https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e003.jpg
(4)
ηred=ηspchttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e004.jpg
(5)
ηinh=InηrelChttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e005.jpg

Where ‘C’ represents polymer concentration in g/dL.

The reduced viscosity (ηred) and the inherent viscosity (ηinh) were simultaneously plotted against concentration. The intrinsic viscosity was calculated from the point of intersection after extrapolation of two plots (i.e. ηred versus C and ηinh versus C) to zero concentration.

Molecular weight analysis

The molecular weight of sample was found out using gel permeation chromatographic technique (1100 series, Agila Technologies, UK) via refractive index detector. A PL aquagel-OH mixed column (7.5 mm×300 mm; 8 μm; Agila Technologies, United Kingdom) was used with mobile phase consisting of 0.1% w/w Sodium azide (Ajax Fine chem, Australia) dissolved in de-ionized water. The flow rate of mobile phase and the column temperature were maintained constantly at kept at 0.5 ml/min and 30°C respectively. Dextrans (Sigma Aldrich, Germany) with molecular weights of 150,000, 410,000, 670,000, 1,400,000 and 2,000,000 Da were used as standards. Prior to the analysis 1 mg/ml of standard as well sample solutions were filtered through a cellulose nitrate membrane (pore diameter = 0.45 μm). Average results of triplicate samples were reported.

Swelling studies in deionized water

Various parameters such as irradiation time, temperature and pH were optimised through swelling studies of GG-g-PAAM at varied time intervals (4, 8, 12, 16, 20 and 24 h), varied temperatures (30, 40, 50, 60 and 700C) and pH (3.0-13.0). Initially required amount of sample (100 mg) was dried in a hot air oven for 24 h at 40°c, weighed, and then it was immersed into 100 ml of deionised water.16

After a predetermined time interval the sample was taken out, wiped gently and reweighed. Ps was calculated as per equation 6. Following the optimization of time, effect of temperature on Ps was studied at pre-optimized time subsequently the optimization of pH at pre-optimized time and temperature was determined.

(6)
Ps=wswdwd×100/xmldata/10.5530jyp.2017.9.102-e006.jpg

Where Ws and Wd are the weights of the swelled and dry polymers, respectively and Ps is percentage swelling. The experiment was carried out in triplicates.

Swelling studies in different salt solutions

Effect of ionic strength on the swelling behaviour of the copolymer was studied at pre-optimised time, temperature and pH using different salt solutions of NaCl, BaCl2, FeCl3 and SnCl4 in deionised water having 0.01, 0.02, 0.03, 0.04 and 0.05 mol L-1 ionic strength of cations i.e. Na+, Ba2+, Fe3+ and Sn4+. Measured quantity of dry sample was immersed in salt solutions and kept under pre-optimized swelling conditions. Finally the samples were taken out wiped carefully and re-weighed. Ps was calculated as per equation 6.

Neutralisation equivalent

Titration method was widely used to estimate the NE (Tripathy and Singh 2000). Two hundred milligrams of the samples were equilibrated with 0.1N HCl for 6 h and the surplus hydrogen ion concentration was back titrated with a standard Sodium hydroxide solution (0.1 N). Subsequently, the equivalent weight of the carboxylic acid functional group was calculated.17

Preparation of beads

DS equivalent to 20 or 40% of dry mass of the polymer was precisely measured and dispersed in 3% w/v aqueous solution of GG or optimised copolymer and mixed thoroughly by means of magnetic stirrer. Using 25 ml hypodermic syringe with needle 23, hydrolysed copolymer dispersion and GG solution were poured into 100 ml aqueous solutions of AlCl3 (20, 30 and 40 % w/v) at a rate of 25 drops/min. The dispersion was continuously stirred and the beads formed were separated from gelation medium, washed twice with distilled water to get rid of unreacted ions and dried at room temperature for 24 h and then at 40°C for 10 h. The composition of beads is given in Table 2. Drug-free co-polymeric beads were prepared following the same method.

Table 2

Composition of beads

CodePolymer (%w/v)Drug (% w/w of polymer)AlCl3 (% w/v)
GGGG-g-PAAM
P13-2020
P2-32020
P3-32030
P4-32040
P5-34040

Measurement of bead size

Digimatic Micrometer (MDC-25S Mitutoyo, Japan) with an accuracy of 0.001mm was used to determine the bead size. The average diameter of 100 particles per batch was calculated.

Estimation of drug entrapment efficiency

A measured quantity of beads were incubated in 100 ml of pH 7.4 phosphate buffer solution for complete swelling and sonicated via probe sonicator (Toshiba, DP120, New Delhi, India) for 15 min to rupture the beads and facilitate the extraction of the drug. The solution was heated gently for 3 h, cooled and centrifuged using a centrifuge (C24 BL-Remi, India). The supernatant liquid was separated; the residue was washed twice with fresh buffer solution to remove any residual drug and added to the supernatant liquid. The pooled liquid was estimated for the drug content using UV–visible spectrophotometer (Model UV-1800, Shimadzu, Japan) at 260 nm.

Pulsatile swelling study

The pulsatile swelling behaviour of drug-free copolymer beads and GG beads were studied by measuring their mass in 25 ml solutions of pH 1.2 and 7.4 at 37°C. A random sequence of step changes was used to analyze the mass response. The pH of the surrounding medium was changed alternatively. The beads were taken out at predetermined time intervals, and excess surface liquid was wiped cautiously using tissue paper and weighed using an electronic balance (Model BL 220H, Shimadzu, Japan) having an accuracy of 0.001mg. The percentage of water uptake (Q) at different time intervals was calculated using the equation 7.

(7)
Q=w2w1w1×100https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e007.jpg

Where W1 is the mass of the dry beads and W2 is the mass of the swollen beads.

In vitro drug release studies

One set of dissolution study was carried out with weighed quantities of beads in 900ml of dissolution medium (0.1N HCl solution of pH 1.2 and pH 7.4 phosphate buffer solution) at 37 ± 0.50C using a programmable dissolution tester (paddle type, ElectrolabTDT-06P (USP) Mumbai, India) at 50 rpm. Second set of dissolution test was performed to evaluate the effect of constant pH changes with time (i.e. to simulate gastrointestinal pH changes), at 37 ± 0.5°C in 900 ml of dissolution medium of different pH values (pH 1.2 for 2 h, pH 5.5 for 1 h, pH 6.8 for 2 h, followed by pH 7.4 for 3 h) Aliquots of samples were removed at predefined time intervals and were replenished immediately with fresh media to maintain sink conditions. The aliquots, following filtration through a 0.45mm membrane filter and after suitable dilution, were analyzed at 260 nm using UV–visible spectrophotometer.

Biodegradability study

5% gum solution was poured onto petri dish and dried. Samples were cut (2cm × 2cm) and placed on the agar medium devoid of any carbon source. Aspergillus niger was inoculated on to the sample films of GG-g-PAAM and incubated at ambient temperature (37°C) for 21 days. Thereafter, the films were observed for evidence of colony growth.

Acute oral toxicity study

Acute oral toxicity study of GG-g-PAAM was performed as per the “Organization of Economic Co-operation and Development (OECD) guidelines for the test of chemicals” 425, adopted “17 December 2001”. The study protocol was prior approved by the Institutional Animal Ethics Committee (IAEC) of JSS College of Pharmacy, JSS University, Mysuru, India. Five nulliparous and non-pregnant five weeks old female albino rats (Swiss strain) were taken for this study. Rats were housed in polycarbonate cage with food and deionised reverse osmosis water at 20–250C and 40–70% relative humidity in a 12 h light/dark cycle. A single dose of 2000 mg/kg body weight of GG-g-PAAM was administered by gavages using a stomach tube to the first animal. If the first animal survives then the same dose was administered to the remaining four animals. The animals were observed at specified time intervals upto 14 days. The mortality rate was assessed by visible observation and reported accordingly.

RESULTS AND DISCUSSION

Synthesis of GG-g-PAAM by microwave assisted method

Synthesis of polyacrylamide grafted GG was carried out via graft copolymerization. Ceric ammonium nitrate is a commonly used reagent to initiate free radical graft copolymerization. As CAN is an electron deficient molecule it acquires electrons from alcoholic oxygen in GG to form a new bond i.e. Ce-O (GG–ceric complex). The ceric (IV) ions in the complex get reduced to ceric (III) ions by oxidizing hydrogen atom. As it is a highly polar bond (than O-H bond), it has affinity to breakdown easily on microwave irradiation and forms free radical on the backbone of GG, and the grafting starts right from the free radical end. The anticipated mechanism of microwave assisted grafting has been shown in Figure 2.

Figure 2

Schematic representation of microwave assisted synthesis of GG-g-PAAM.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g002.jpg

A considerable amount of redox initiator is essential for free radical generation. Free radical readily reacts with the monomer and plays a prominent role in grafting of PAAM onto GG. GG free radical chemically couples to the monomer unit via covalent bond. The reaction is terminated by combination of two radicals. The sample is then provided with microwave irradiation which greatly reduces the reaction time by inducing rapid internal energy transfer. Microwave is regarded as a catalyst which synergises with ceric ions in graft copolymerization.

The optimized formulation has been determined by its higher percentage grafting and intrinsic viscosity (which is directly proportional to the molecular weight). Using factorial design three different variables were picked out to optimize the GE. MLRA was used to express the mathematical relationship with GE.

(8)
GE(%)=76.92 + 5.27A - 2.54B + 6.58Chttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e008.jpg

Where, A is amount of CAN (mg), B is irradiation time (min) and C is amount of PAAM (g). The positive effect of CAN and PAAM was due to the formation of more number of free radical sites and addition of PAAM side chains to them. The negative effect of irradiation time on GE was owing to chain breakage under microwave irradiation. ANOVA analysis showed that the factorial model was significant (P < 0.04) having R2 value of 0.97. The adjusted (0.98) and the predicted (0.96) R2 values were in realistically good agreement.

Characterization of the copolymer

Optimization of various reaction parameters

Effects of various reaction parameters such as reaction time, temperature, initiator concentration, concentration of PAAM on the graft co-polymerization were accounted in Figure 3. Figure 3(a) illustrates the effect of reaction time on Pg and the reaction time was varied from 60 to 300 sec. It was observed that percentage grafting increases with increase in reaction time reaches a maximum point (79 %) after 150 sec and then decreases with further increase in reaction time. This can be inferred as primarily with the increase in reaction time, interactions between *OH and substrate increased leading to the formation of more active sites on GG as well as on PAAM chains and the rate of grafting was very high which resulted in increased Pg. Whereas, at too longer reaction time, concentration of PAAM and radicals reduced, further homo-polymerization pre-dominates over graft copolymerization. Moreover, homo-polymerization results in highly viscous medium and forms a barrier in the path of the free radicals reaching the active sites. Hence, a decreased Pg was observed after optimal reaction time.18

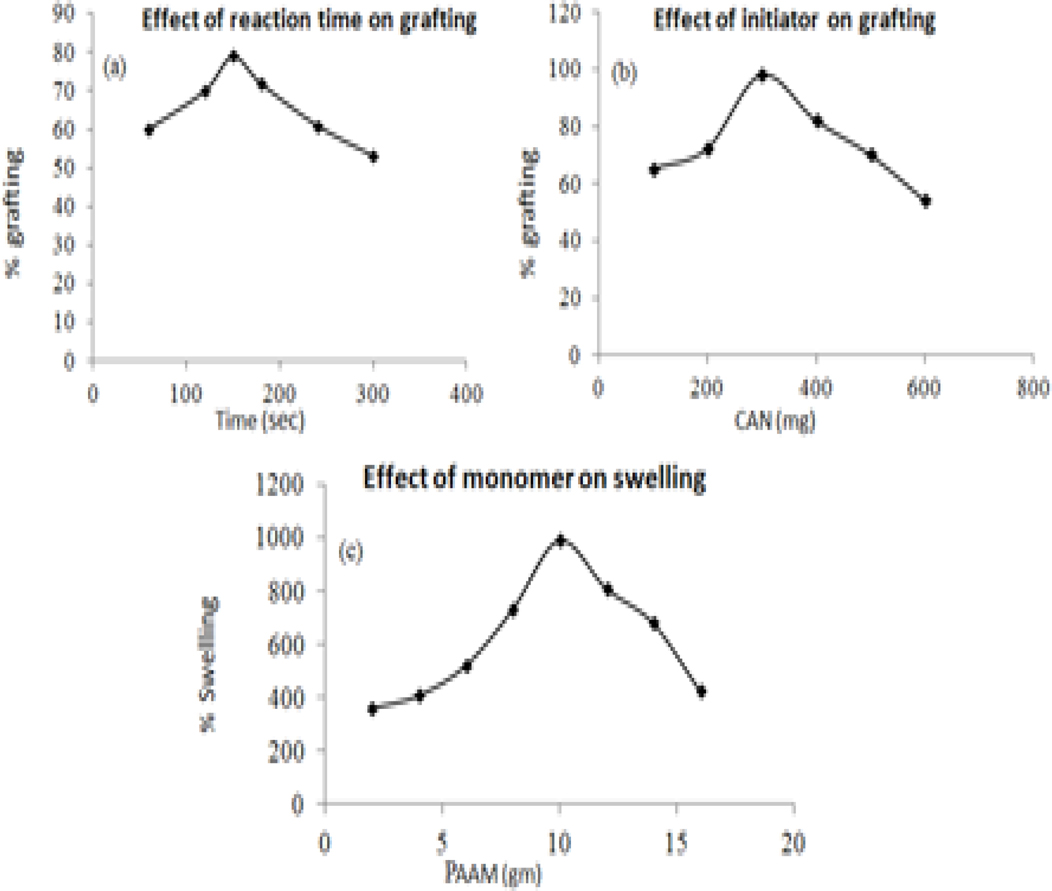

Figure 3

(a) Effect of reaction time on Pg (b) effect of initiator concentration on Pg (c) effect of concentration of PAAM on Ps.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g003.jpg

Concentration of initiator was also plays a prominent role in depicting the grafting yield. Figure 3(b) demonstrates the effect of initiator concentration on Pg. Maximum Pg was attained at 300 mg of CAN. However, further increase resulted in decreased grafting yield. Initially concentration of initiator was augmented leading to the production of more active sites on the PAAM chains and GG resulting in increased Pg, whereas, excessive concentration of the initiator led to the premature cessation of the reaction and did not allowed further grafting. Therefore, lesser Pg was observed at higher concentration of initiator.

Optimization of the concentration of PAAM was necessary to obtain a hydrogel with maximum swelling capacity and was done as a function of Ps. Figure 3(c) discloses the effect of PAAM concentration on Ps. Concentration of PAAM was varied from 0.028 to 0.225 moll-1 (2-16 gm) by keeping remaining grafting parameters constant. Initially Ps was increased with increase in PAAM concentration and attained maximum value at 0.140 moll-1 (10 gm) concentration of PAAM whereas, a sharp decline in the Ps was observed with the further increase in PAAM concentration. The initial increase in swelling may be attributed to the highly porous and flexible network structure that could hold more water molecules however further increase in PAAM concentration resulted in firm and dense crosslinked moiety, thereby showing lesser swelling.19

FTIR spectroscopy

From the FTIR spectrum of gum ghatti [Figure 4(a)], it has been observed that a peak at 3411.69 cm-1 is due to stretching vibration of 20 -OH (CH2OH), Smaller peaks at 2928.04 cm-1 are assigned to the C-H stretching vibrations. Peak at 1855.58 and 1618.33 cm-1 are assigned to -C≡C-, C-O stretching vibrations. The peak at 1421.58 cm-1 is due to -COO- bending vibration, 1032.62 cm-1 is attributed to the C-O-C stretching vibration, 777.34 peak is due to pyranose ring structure.

In case of GG-g-PAAM (G4) [Figure 4(b)], it has been observed that there are some additional peaks. Peak at 3450.82 cm-1 indicates N-H group of amide, 2929.97 is due to C-H stretching vibrations; band at 1658.84 cm-1 is attributed to amide-I (CO stretching). The peak at 1350.22 cm-1 is due to C N stretching vibrations. The peak appearing at 1122.61 cm-1 is due to the ether linkage formed by the reaction between OH groups of GG and PAAM is a supportive evidence for grafting. This confirms the grafting reaction. FTIR analysis indicated that GG was successfully modified into GG-g-PAAM.

Figure 4

FTIR spectrum of (a) pure GG and (b) optimized GG-g-PAAM (G4).

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g004.jpg

Elemental analysis

The results of elemental analysis (C, H & N) for GG and of all batches of polyacrylamide grafted ghatti gum (GG-g-PAAM) are shown in Table 3. Gum ghatti by nature is devoid of nitrogen. However, all the batches of GG-g-PAAM have nitrogen. The presence of nitrogen in GG-g-PAAM (but absent in GG) is an indication of grafting of PAAM chains on to GG as the amide groups present in PAAM chains contribute to the nitrogen in GG-g-PAAM). Further, as percentage grafting increases, percentage of nitrogen increases. A considerable increase in nitrogen (16.75%) was seen in G4. This can be attributed to the presence of -CONH2 groups of PAAM on the GG. On the other hand, the percentage of nitrogen was reduced to 7.26% in hydrolyzed copolymer. During hydrolysis, the -CONH2 groups were converted to -COOH groups, leading to decreased nitrogen content. This confirmed the grafting and hydrolysis reactions.

Table 3

Elemental analysis details of PAAM-g-GG and native GG

Batch code%C%H%N
G142.318.719.45
G243.629.1312.25
G344.519.3612.82
G446.8910.8216.75
G544.389.6911.97
G643.879.4215.84
G742.759.6313.75
G842.2710.1213.08
GG38.428.450.00
Hydrolysed gum46.5214.377.26

Mathematical relationship generated using MLRA for % N was expressed as (Equation 9).

(9)
%N=15.95+0.92Chttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e009.jpg

Where C is the amount of PAAM (g).

Since nitrogen was present only in PAAM amount of CAN and irradiation time becomes insignificant in estimation of % N content. An increase in % N with % GE indicates the grafting of PAAM onto the GG backbone. From ANOVA study, it was observed that the factorial model was significant (P < 0.05) having R2 value of 0.86. The adjusted (0.82) and the predicted (0.89) R2 values were in convincingly good agreement.

Thermogravimetric analysis, Differential thermal analysis, Differential thermogravimetric analysis (TGA/DTA/DTG)

TGA of GG and GG-g-PAAM was studied as a function of % weight loss versus temperature. Decomposition was observed in case of TGA of GG and GG-g-PAAM. GG showed an initial decomposition temperature (IDT) of 206.9°C and final decomposition temperature (FDT) at 521.6°C [Figure 5(a)]20, whereas; GG-g-PAAM showed IDT and FDT at 134.7°C and 598.7°C respectively [Figure 5(b)].

From the comparison of the TGA of GG and GG-g-PAAM, it was observed that the IDT of GG was elevated whereas the FDT was lower than that of GG-g-PAAM. This may be due to the grafting of PAAM which lowers the IDT of the graft copolymers, and the PAAM chains degrade by the formation of imide group and evolution of ammonia. Formation of imide group increases the FDTs of the graft copolymers. Thus, it could be concluded from the TGA data that GG-g-PAAM is thermally more stable as compared to GG because of the formation of crosslinks between different polymeric chains through covalent bonding. The results furnished by the TGA studies were further supported by DTA and DTG studies.

The exothermic peak at 483.20C (203μV) was obtained in case of DTA of GG, whereas; GG-g-PAAM exhibited exothermic DTA peaks at 597.3°C (186.6μV). From the DTA data, it is clear that the heat evolved in the thermal decomposition of GG-g-PAAM is very less as compared to GG. Moreover, in case of GG-g-PAAM degradation occurred at higher temperature.

Figure 5

(a) TG/DTA/DTG of GG (b) TG/DTA/DTG of GG-g-PAAM.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g005.jpg

DTG of GG showed maximum decomposition at 470.2°C with 2.245 mg/min rate of weight loss whereas; in case of GG-g-PAAM maximum decomposition was observed at 595.9°C with 1.183 mg/min rate of weight loss. Therefore, it is clear from the DTG that maximum decomposition was observed at a much higher temperature with a lesser weight loss in GG-g-PAAM compared to GG.

Scanning Electron Microscopy (SEM) analysis

It was clear from the SEM micrographs of gum ghatti [Figure 6(a)] and that of GG-g-PAAM (G4) [Figure 6(b)] that identifiable morphological change, in the form of transition from flaky structure to porous spongy structure, has taken place due to grafting of PAAM chains onto the polysaccharide. The beads prepared from hydrolysed copolymer were spherical in shape with a rough and dense surface having microscopic cracks on the surface as shown by SEM [Figure 6(c)].

Figure 6

SEM micrograph of (a) gum ghatti (b) GG-g-PAAM (G4) (c) P5 bead.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g006.jpg

Estimation and interpretation of intrinsic viscosity

The intrinsic viscosity was calculated for gum ghatti and for all the batches of GG-g-PAAM, as shown in Table 4.

Intrinsic viscosity is basically the hydrodynamic volume of a molecule in the solvent (water in this case). As shown in Table 4, intrinsic viscosities of all the batches of GG-g-PAAM are higher than that of GG. This is due to the increase in hydrodynamic volume attributed to the grafting of the PAAM chains on the main polymer backbone (GG). The grafted PAAM chains may increase hydrodynamic volume by two ways:

(1) By uncoiling of the polysaccharide chain through steric hindrance to intra-molecular bonding.

(2) By contributing their own hydrodynamic volume.

Table 4

Intrinsic viscosity results of GG-g-PAAM and native GG

Batch codeIntrinsic viscosity (dl/g)
G11.72
G21.95
G32.52
G45.47
G51.80
G64.12
G73.43
G82.16
GG1.65

Further, the rise in intrinsic viscosity is because the grafting is in good accord with Mark–Houwink–Sakurada relationship (intrinsic viscosity η = KMα, where K and α are constants, both are related to stiffness of the polymer chains), which features the increase in intrinsic viscosity to the increase in molecular weight (M) due to the grafted PAAM chains. As evident from Figure 7, intrinsic viscosity increases exponentially with percentage grafting.

Figure 7

Intrinsic viscosity versus percentage grafting plot for GG-g-PAAM.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g007.jpg

Mathematical relationship produced using MLRA for viscosity was given as (Equation 10).

(10)
Viscosity=0.82-0.10C+0.058AC-0.089BC-0.080ABChttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e010.jpg

Where A is amount of CAN (mg), B is irradiation time (min) and C is amount of PAAM (g). From ANOVA study, it was found that the factorial model was significant (P < 0.05) having R2 value of 0.95. The adjusted (0.94) and the predicted (0.85) R2 values were in convincingly good agreement. Hence it can be understood that the model can be used to follow the design space.

Molecular weight analysis

The result of gel permeation chromatography (GPC) is shown in Table 5. Most of the batches of grafted gum were eluted at about 7.5-8 mL of elution volume.

Table 5

Molecular weight analysis data of GG-g-PAAM and native GG

Batch codeMolecular weight (×106 g/mol)
G13.2606
G25.1382
G34.3490
G46.0932
G512.1538
G68.5782
G77.5397
G811.9730
GG13.6178

From the results it can be said that the pure gum was having the highest molecular weight of 12.1538×106 g/mol. However, in case of grafted gum, molecular weight was decreased. In case of optimized batch (G4), molecular weight was found to be 6.0932×106 g/mol. This extreme reduction in molecular weight was because of the polymer chain distraction during the application of microwave irradiation. Few batches having less % GE (G5) showed higher molecular weight. This may be due to the presence of pure GG chains in the system. On the other hand, in case of G8, increase in molecular weight was observed though it has a GE of 90.382 %. This was due to the presence of higher amounts of grafted polymer segments in the system. The relation between log transformed value of viscosity and molecular weight was linear (R2 = 0.97) which satisfied the Mark–Houwink equation.

Neutralisation equivalent (NE)

The NE value designates the basicity of polybasic acid. NE is equal to the molecular weight of the acid. During alkaline hydrolysis of the amide groups, molecular weight of the polymer would remain the same (since one -OH group is incorporated after the exclusion of NH3). Therefore, higher the number of carboxyl groups, lower will be the NE. The NE values of pure GG, GG-g-PAAM and hydrolyzed GG-g-PAAM were found to be 1748.63, 1740.89 and 280.32, respectively, (Table 6). This indicates that the hydrolyzed GG-g-PAAM copolymer contains more COO2 groups than pure GG, which are liable for pH sensitivity.

Swelling studies of GG-g-PAAM in deionized water

Effect of time on extent of swelling

Effect of swelling time on Ps was studied at different time intervals (4, 8, 12, 16, 20 and 24 h) in neutral medium at room temperature [Figure 8(a)]. From the figure it was evident that Ps increased with increasing swelling time and attained the maximum value after 16 h, whereas, swelling was found to be arrested on further raise in swelling time. This is due to the fact that the porous structure of the hydrogel got saturated and allowed no more space for the water molecules beyond optimal swelling point.

Table 6

Neutralisation equivalent values

PolymerNE (g)
GG1748.63±0.82
G41740.89±0.68
Hydrolysed G4280.32±0.51

Effect of temperature on extent of swelling

The temperature responsive swelling behaviour of GG-g-PAAM was studied at different temperatures (30, 40, 50, 60 and 700C) in neutral medium at pre-optimized time (16 h) [Figure 8(b)]. Initially Ps was found to increase with increase in temperature and attained maximum at 60°C whereas, increase in temperature beyond optimal value resulted in a decreased Ps. At higher temperatures, the elasticity of the polymeric matrix increased so that it can accommodate more water molecules. Also, at higher temperatures, the secondary bonding forces such as hydrogen bonds between water molecules and hydrophilic groups of the hydrogel network plays a prominent role. These hydrogen bonds formed a network like structure and increased the water holding capacity of GG-g-PAAM which finally resulted in increased Ps. Nevertheless at too higher temperatures, the polymer matrix gets distorted and the hydrogen bond networks broke down leading to desorption of water molecules and decreased Ps.21

Effect of ionic strength of different cations on extent of swelling

The alteration in the swelling behaviour of GG-g-PAAM with regard to changing ionic strength of different cations in different salt solutions is depicted in Figure 8(c). It was observed from the figure that Ps decreases with increase in ionic strength and even cationic charge. This type of behaviour could be as a result of the reverse osmosis process. Furthermore, value of Csi (concentration of the free mobile ions in the medium) increased with increasing ionic strength and reduced the value of ᴨion (Osmotic swelling pressure). Therefore, Ps value decreased with increased ionic strength of cations. It was further observed that Ps of GG-g-PAAM decreased with an increase in the charge of metal cations (Na+ > Ba2+ > Fe3+ > Sn4+). Free carboxylate groups of the hydrogel formed complexes with the multivalent cations which reduced the anionic repulsion, and a lesser value of Ps was observed. Therefore, Ps decreased with increased ionic strength of cations and cationic charge.

Figure 8

(a) Effect of time on Ps of GG-g-PAAM (b) Effect of temperature on Ps of GG-g-PAAM (c) Effect of ionic strength of various cations on Ps in different salt solutions.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g008.jpg

Measurement of bead size

The size range of beads was observed to be 980-1215 mm and was shown in Table 7. AlCl3 acts as a cross-linking agent and as its concentration increased, smaller beads were produced.

This implies that during cross-linking, the hydrogel might have undergone rapid shrinking leading to the formation of smaller and firm matrix with higher cross-link densities. An analogous result has been reported with poly (vinyl alcohol) hydrogels.22 Conversely, increase in the amount of Diclofenac sodium increased the bead size as Diclofenac sodium might have occupied the interstitial spaces between polymer segments. This is in accord with the previously published results for chitosan microparticles.

Table 7

Average bead size and DEE of the beads

BeadsAverage Size(μm)DEE (%)
P11215±2.8078.18±0.05
P21200±3.2577.42±0.05
P3996±3.9586.17±0.007
P4972±4.3890.51±0.01
P5980±4.0989.38±0.01

Drug entrapment efficiency

Table 7 illustrates that Drug entrapment efficiency (DEE) of the beads made with lower concentration of AlCl3 was lowest than those prepared with higher concentration of AlCl3. At lower concentration of AlCl3, the hydrogel matrix might be loose and have larger pores due to inadequate cross-linking, which results in higher seepage of drug into the gelation medium from the polymer matrix during the preparation of beads, and this might have resulted in lower DEE. At higher concentration of AlCl3, the hydrogel matrix is rigid hence seepage of drug from the polymer matrix is low resulting in high DEE. A similar study on DEE of alginate beads has been reported.23

Pulsatile swelling behaviour of beads

The pH sensitivity of the copolymer was determined by studying pulsatile swelling of drug-free copolymeric beads in the solutions of pH 1.2 and 7.4. Figure 9 depicts that the beads formed from GG did not show noticeable pulsatile swelling behaviour. In contrast, beads made of hydrolysed copolymer swelled and de-swelled sharply with the changing pH environment. At higher pH values, the carboxyl functional groups of copolymeric beads undergo ionization and subsequently, the osmotic pressure inside the beads increases resulting in higher swelling. However, the swelling depends upon the density of cross-linking. At low cross-link density, the hydrogel network is loose with a greater hydrodynamic free volume and can absorb more of the solvent resulting in higher swelling.

In vitro drug release

The release of Diclofenac sodium from pure GG and copolymeric beads in acidic medium was lesser than the analogous beads in alkaline medium (Figure 10). Slower release in acidic medium may be primarily due to the lower solubility of drug in acidic medium (pKa 4.6). Figure 10 further indicates that the drug release from copolymeric beads was significantly lesser than from pure GG beads. This indicates that in addition to the solubility of drug, swelling behaviour of the beads might have contributed in determining the drug release. Pulsatile swelling study (Figure 9) showed that the copolymeric beads de-swelled rapidly in acidic medium. In other words, the swelling of pure GG beads in acidic medium was greater than that of copolymeric beads and, therefore the drug release was faster from pure GG beads.

Figure 9

Pulsatile swelling behavior of beads P1 (▲), P2 (■), P3 (), P4 (×) and P5 (■).

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g009.jpg

The drug release from pure GG beads in alkaline medium was also found to be higher than that from the different batches of copolymeric beads. While pure GG beads released the drug completely in 4 h, a maximum of 90.18 % drug release was observed from the copolymeric beads at the end of 8 h. Although the swelling of copolymeric beads in alkaline medium was higher than that of pure GG beads, slower drug release from the copolymeric beads may be attributed to slower diffusion of drug through the rigid hydrogel network. Figure 10 shows that the beads prepared with higher concentration of AlCl3 released the drug more slowly as the increase in the concentration of the gel-forming ions provided high rigidity of the hydrogel network due to the increased cross-link density. The diffusion coefficient24 of the drug from various copolymeric beads was calculated using the equation 11 and the results are presented in Table 8.

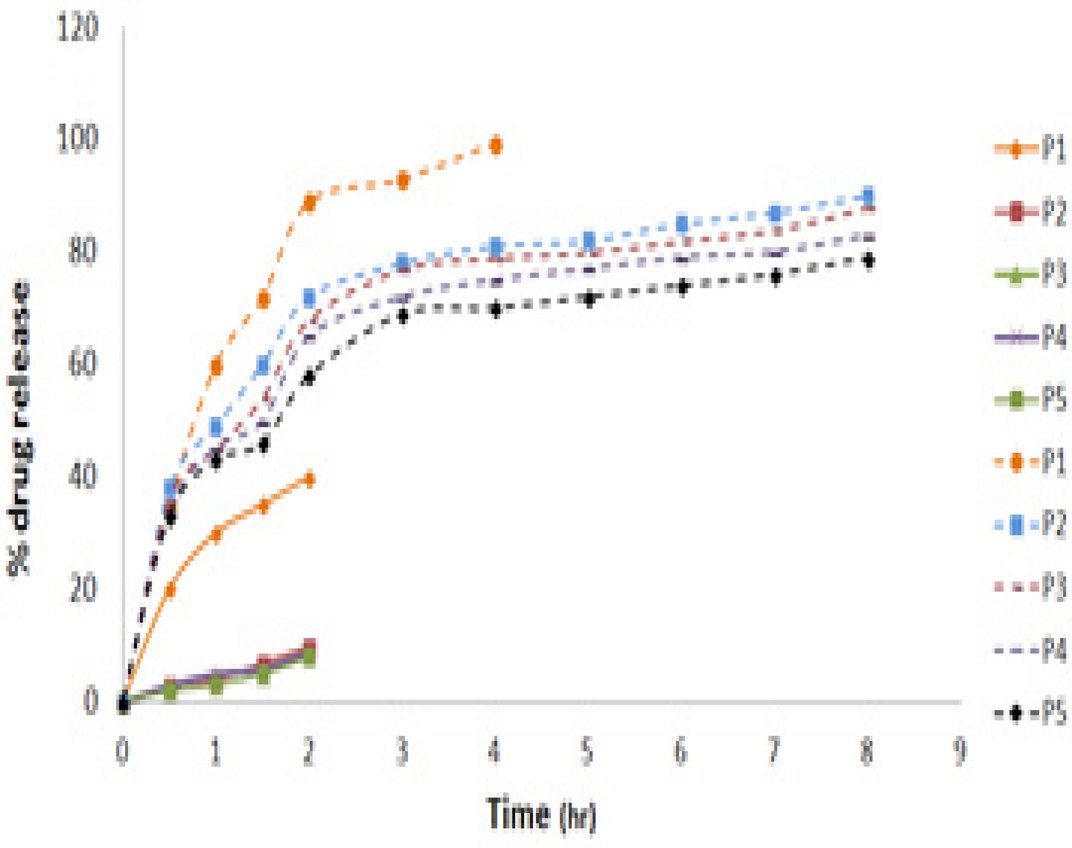

Figure 10

Release of diclofenac sodium from beads in pH 1.2 buffer solution (solid lines) and pH 7.4 buffer solution (dotted lines).

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g010.jpg

Where θ is the slope of the linear portion of the plot of Mt/M versus t1/2, r is the radius of the beads and M is the total amount of drug loaded. The diffusion coefficients were determined based on the Fickian diffusion model, and the results of Table 8 showed that the diffusion coefficient of the drug was higher from the beads which were prepared with lower concentration of AlCl3 and as the concentration of AlCl3 increased, diffusion coefficient of the drug decreased considerably (P ˂ 0.06). This

(11)
D=(rθ6M)2πhttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e011.jpg

result confirms that as the concentration of AlCl3 is increased, more rigid gel structure within the copolymeric beads is formed and this hinders the drug diffusion. Figure 10 also shows the effect of initial drug loading on the release of drug from copolymeric beads. Keeping all the variables constant, increase in initial drug loading increased the drug release. Increase in initial drug load decreases the proportion of polymer per unit weight and this weakens the gel network structure. Moreover, higher drug loading increases the free volume within the network and creates a more tortuous path for water to penetrate through. Consequently, increase in initial drug loading increased the release of drug.

Table 8

Diffusion coefficients (D) and release parameter (n) of the beads in different pH solutions

BeadsD (cm2/s)nr*
pH 1.2pH 7.4pH 1.2pH 7.4pH 1.2pH 7.4
P16.215×10-52.175×10-60.6780.6281.1920.985
P25.318×10-67.978×10-70.9830.5961.5270.924
P33.543×10-67.287×10-71.0860.6810.9860.951
P42.283×10-66.355×10-71.3150.7330.9540.883
P53.179×10-67.238×10-70.9720.6991.2580.839

[i] * Correlation coefficient

Figure 11 represents the release profiles of Diclofenac sodium from various beads in dissolution medium, the pH of which was changed at predetermined time intervals. It was evident that at lower pH, the initial drug release was lesser from the copolymeric beads and as pH increased, the drug release increased and extended over a prolonged period depending upon the formulation variables. To understand the drug release mechanism in the hydrogel network, release data were fitted to an empirical equation 12.25

Where Mt is the amount of drug released at time t, M is the total amount of drug loaded and n values are the indication of the type of release mechanism. The calculated n values along with the correlation coefficients are shown in Table 8.

(12)
MtM=Ktnhttps://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-e012.jpg

The values of n depend upon the cross-link density and increase with increase in cross-link density. The calculated n values suggested that the mechanism of drug release was deviated from the Fickian mode and followed case II transport and anomalous transport, in acidic and alkaline media respectively. P5 bead formulation had demonstrated satisfactory in vitro drug release of 8 and 79 % at the end of 2nd and 8th h of dissolution study.

Figure 11

Release of diclofenac sodium from beads during continuous exposure to a changing pH environment.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g011.jpg

Biodegradability study

Figure 12 shows the fungal growth for different batches of films of GG-g-PAAM. It is clearly noticeable in the figures, which show apparent fungi growth for 3, 7, 14 and 21 days in all the Petri dishes. The apparent growth of fungi in mineral salts agar medium (without any added carbon source) proves that the carbon present in the grafted polymer had been utilized by the fungi for its growth. Thus it can be simply concluded that polyacrylamide grafted GG is biodegradable in nature.

Acute oral toxicity study

The results of acute toxicity studies were shown in Table 9. It is clear that there was no mortality found within the observation period of 14 days after dosing. As per the “Organization of Economic Co-operation and Development (OECD) guideline for the test of chemicals” 425, adopted “17 December 2001” Annexure – 4, considering the need to guard animal welfare; testing in animals is discouraged. As per the globally harmonized system (GHS), if LD50 value is greater than the 2000 mg/kg dose, then the test product will fall under “Category 5” and the toxicity rating will be “zero”. So, GG-g-PAAM falls under “category 5” with toxicity rating “zero”.

Table 9

Mortality rate of animals after a single dose of 2000 mg/kg body weight

Observation time periodMortality
Animal 1Animal 2Animal 3Animal 4Animal 5
30 min00000
4th00000
1st day00000
3rd day00000
7th day00000
14th day00000

[i] ‘0’ survival and ‘x’ death

Figure 12

Gradual growth of A. niger in minimal salt agar media by utilizing the grafted gum as carbon source.

https://s3-us-west-2.amazonaws.com/jourdata/jyp/xmldata/10.5530jyp.2017.9.102-g012.jpg

CONCLUSION

In the present study GG-g-PAAM was synthesized by microwave irradiation using ceric ammonium nitrate as a redox initiator. Optimised GG-g-PAAM copolymer was then hydrolyzed using sodium hydroxide to convert CONH2 groups of PAAM to COOH groups so as to attain a pH-sensitive copolymer. The release of Diclofenac sodium from the copolymeric beads was considerably less in acidic medium and tended to increase as the pH of release medium was increased. Major portion of the drug (about 90%) was found to be released in the pH range existing in the intestine.

Notes

[3] Conflicts of interest CONFLICT OF INTEREST The authors declare that they have no conflict of interest

ACKNOWLEDGEMENT

The authors acknowledge JSS Mahavidyapeetha, Mysuru and JSS University, Mysuru, India, for their valuable support during this research. The authors wish to thank CFTRI, Mysuru for providing facilities for SEM and DSC studies.

ABBREVIATIONS USED

DS

Diclofenac sodium

FT-IR

Fourier transform infrared

SEM

Scanning electron microscopy

DSC

Differential scanning calorimetry

GG

ghatti gum

NSAID

Non-steroidal anti-inflammatory drug

GIT

Gastrointestinal tract

PAAM

Polyacrylamide

CAN

Ceric ammonium nitrate

GE

Grafting efficiency

MLRA

Multiple linear regression analysis

FDT

Final decomposition temperature

IDT

Initial decomposition temperature

GPC

Gel permeation chromatography

DEE

Drug entrapment efficiency

REFERENCES

1.

Bechgaard H, Hegermann NG , authors. Controlled release multipleunits and single unit doses: A literature review. Drug Dev Ind Pharm. 1978;4(1):53–67

2.

Ghebre-Sellassie I , author. Multiple oral drug delivery. 1994. Marcel Dekker; New York:

3.

Galeone M, Nizzola I, Cacioli D, Mosie G , authors. In vitro demonstration of delivery mechanism from sustained release pellets. Curr Ther Res. 1981;29(2):217–34

4.

Davis SS, Hardy JG, Taylor MJ, Whalley DR, Wilson CG , authors. Comparative study of the gastrointestinal transit of a pellet and tablet formulation. Int J Pharm. 1984;21(2):167–177

5.

Fowler PD , author. Aspirin, paracetamol and non-steroidal anti-inflammatory drugs: A comparative review of side effects. Med Toxic. 1987;2(5):338–66

6.

Cook PM , author. Side effects of non-steroidal anti-inflammatory drugs. Med J Austral. 1988;148:248–51

7.

Desai KG, Liu C, Park HJJ , authors. Characteristics of vitamin C encapsulated tripolyphosphate–chitosan microspheres as affected by chitosan molecular weight. Microencapsul. 2006;23(1):79–90

8.

Qiu Y, Park K , authors. Environment sensitive hydrogels for drug delivery. Adv Drug Deliv Rev. 2001;53(3):321–39

9.

Kaur H, Chatterji RR , authors. Interpenetrating hydrogel networks- swelling and mechanical properties of the gelatin–polyacrylamide interpenetrating networks. Macromolecules. 1990;23(22):4868–71

10.

Anand S, Deshmukha C, Mallikarjuna S, Aravind M, Badigerc KS, Muralikrishna K , authors. Gum ghatti: A promising polysaccharide for pharmaceutical applications. Carbohydr Polym. 2012;87(2):980–6

11.

Athawale VD, Lele V. G , authors. Graft co-polymerization onto starch. II: Grafting of acrylic acid and preparation of its hydrogels. Carbohydr Polym. 1998;35(1-2):21–7

12.

Kaity S, Isaac PJ, Kumar M, Bose A, Wong TW, Ghosh A , authors. Microwave assisted synthesis of acrylamide grafted locust bean gum and its application in drug delivery. Carbohydr Polym. 2013;98(1):1083–94

13.

Raghavendra V, Kulkarni B , authors. Enteric delivery of ketoprofen through functionally modified poly (acrylamide-grafted-xanthan)-based pH-sensitive hydrogel beads: Preparation, in vitro and in vivo evaluation. J Drug Target. 2008;16(2):167–77

14.

Robert MS, Francis XW , authors. Spectrometric identification of organic compounds. 2011. Wiley; New Delhi:

15.

Collins EA, Bares J, Billmeyer FW , authors. Experiments in polymer science. 1973;John Wiley & Sons. New York.

16.

Xu FJ, Kang ET, Koon-Gee N , authors. pH- and temperature-responsive hydrogels from crosslinked triblock copolymers prepared via consecutive atom transfer radical polymerizations. Biomater. 2006. 27(14):p. 2787–97

17.

Tripathy T, Singh RP , authors. High performance flocculating agent based on partially hydrolysed sodium alginate-g-polyacrylamide. Eur Polym J. 2000;36(7):1471–76

18.

Tian D, Xie HQ , authors. Synthesis and Flocculation Characteristics of Konjac Glucomannan-g-Polyacrylamide. Polym Bull. 2008;61(3):277–85

19.

Kaith BS, Jindal R, Mittal H, Kumar K , authors. Synthesis, characterization, and swelling behavior evaluation of hydrogels based on gum ghatti and acrylamide for selective absorption of saline from different petroleum fraction–saline emulsions. J Appl Polym Sci. 2012;124(3):2037–47

20.

Kaith BS, Jindal R, Maiti M, Jana AK , authors. Development of corn starch based green composites reinforced with Saccharum spontaneum L fiber and graft copolymers–Evaluation of thermal, physico-chemical and mechanical properties. Bioresour Technol. 2010;101(17):6843–51

21.

Fu-Jian X, En-Tang K, Koon-Gee N , authors. pH- and temperature-responsive hydrogels from crosslinked triblock copolymers prepared via consecutive atom transfer radical polymerizations. Biomater. 2007;27(14):2787–97

22.

Korsmeyer RC, Peppas NA , authors. Effect of the morphology of hydrophilic polymeric matrices on the diffusion and release of water-soluble drugs. J Membr Sci. 1981;9(3):211–27

23.

Bhopatkar D, Anal AK, Stevens WF , authors. Ionotropic alginate beads for controlled intestinal protein delivery: Effect of chitosan and barium counter-ions on entrapment and release. J Microencapsul. 2005;22(1):91–100

24.

Agnihotri SA, Aminabhavi TM , authors. Controlled release of clozapine through chitosan microparticles prepared by novel method. J Control Rel. 2004;96(2):245–59

25.

Ritger PL, Peppas NA , authors. A simple equation for description of solute release. II. Fickian and anomalous release from swellable devices. J Control Rel. 1987;5(1):37–42
