INTRODUCTION
Since the discovery of penicillin, the world’s first antibiotic, there was the medical belief that this development will lead to the eradication of infectious diseases. However, the overuse and misuse of these antibiotics have led to the emergence of multidrug-resistant bacteria. Recently, antibiotic resistance has reached a dramatic low-point that some infections have developed resistance to even vancomycin, which is considered as the ‘antibiotic of last resort’.1 Therefore, this has initiated an interest towards the development of alternative antibacterial agents and the re-evaluation of the therapeutic uses of herbal extracts and essential oils.2
Herbal extracts and their essential oils are rich in phytochemicals, such as phenolics, flavonoids and tannins,3 which are sources of natural antioxidants and provide protection against predation by microbial pathogens.4 Besides, a large number of studies have found a good correlation between the phytochemical content and the antimicrobial efficacy of the herbs investigated, indicating that these secondary metabolites are responsible for the antimicrobial effect.5 Among them, Nigella sativa (N. sativa) belonging to the Ranunculaceae family is a promising herb, often referred to as the nature’s miracle remedy.6
N. sativa, also known as black cumin, grows in many countries around the Mediterranean Sea.7 Seeds of N. sativa have been used as a condiment in the food industry and as a traditional remedy for a number of diseases including asthma, hypertension, diabetes, eczema, inflammation, rheumatism, jaundice and gastrointestinal problems.8 In recent years, both seeds and its oil have been widely investigated and reported to exhibit several pharmacological effects such as analgesic, anti-inflammatory;9 anticancer,10 antiulcer11 and antibacterial activity.12 Ugur et al.13 making their treatment difficult. Nigella sativa oil is known to be active against Gram-positive cocci, yet its in vitro cytotoxicity is rarely investigated, is a proper and powerful candidate for treatment of methicillin-resistant isolates. OBJECTIVES:: The aim of this study is to evaluate the in vitro antibacterial activity and cytotoxicity effect of N. sativa oil. MATERIALS AND METHODS: The minimal inhibitory concentrations (MICs) showed that N. sativa oil has an excellent antibacterial activity against clinical isolates of methicillin-resistant S. aureus and methicillin-resistant coagulase-negative Staphylococci with very low MIC range of <0.25–1.0 μg/ml.13 Other studies reported that N. sativa seed oil is rich in phenolic compounds with strong antioxidant properties.14 The phytochemical composition of N. sativa oil was further characterized by many studies. Farag et al. showed that N. sativa oil contains more than 52 Metabolites including 8 saponins, 10 flavonoids, 6 phenolics, 10 alkaloids, and 18 fatty acids that might be utilized for their health benefits.15
The present study was conducted to determine total phenolic, tannin, and flavonoid content of N. sativa seed extracts and its commercially available oil and to carry gas chromatographic–mass spectrometric studies to describe the essential oil and fixed oil (fatty acid) composition of the different N. sativa preparations. Their antiradical activity using DPPH method and the antibacterial activity against multidrug resistant strains were also performed.
Therefore, the aim of the current study was to perform phytochemical analysis of Nigella sativa L. utilizing GC-MS exploring its antioxidant and antibacterial activity against multidrug resistant (MDR) gram-positive and gram-negative bacteria.
MATERIALS AND METHODS
Nigella sativa preparation
N. sativa seeds (imported from India) were purchased from a local herb store in Beirut, Lebanon. Seeds were identified and authenticated with reference sample and were given voucher specimen number (NS-16-14) and stored in the Faculty herbarium. The seeds were grounded to a powder shape using an electric grinder for 5 min, and then the grounded samples (50 g) were soaked overnight in 200 ml of distilled water or methanol under shaking for the preparation of aqueous and methanolic extracts, respectively. The extracts were then centrifuged, filtered twice then filter sterilized using nitrocellulose membrane filter. Sterile-filtered oil and capsules oily content of N. sativa (Pharco Pharmaceuticals, Egypt) were included in this study.
Bacterial strains, culture media and growth conditions
Eleven multiple antibiotic resistant bacterial strains were included in this study. They are clinical isolates provided by the Faculty of medicine, Alexandria University, Egypt. The isolates tested include the following gram-positive strains: 2 Methicillin-resistant Staphylococcus aureus (MRSA), 2 Methicillin-resistant Staphylococcus epidermidis (MRSE), high-level aminoglycoside-resistant (HLAR) Enterococci (Enterococcus faecalis and Enterococcus faecium which was also vancomycin- resistant (VRE)). Furthermore, the following gram-negative strains including 1 strain of Pseudomonas aeruginosa, 2 strains of Klebsiella pneumoniae and 2 strains Acinetobacter baumannii were also studied. The strains of Klebsiella pneumoniae and Acinetobacter baumannii were previously proved to be extended-spectrum β-lactamases (ESBL) as well as Carbapenemase producers. All strains were previously validated at the Microbiology laboratory, Faculty of Medicine, Alexandria University, Egypt. MRSA and MRSE by doing cefoxitin sensitivity test, HLA enterococci by using gentamicin discs and Vancomycin resistant enterococci by vancomycin sensitivity test. All gram-negative strains were identified by different biochemical reactions. The ESBL strains were identified by double synergy test while Carbapenemase production by modified Hodge tests.
Total Phenolic Content determination
The total phenolic content was determined according to FolinCiocalteu (FC) method.16 0.2 ml of standard (gallic acid) or diluted sample, 1.0 ml of FC reagent, and 0.8 ml of Na2CO3 solution (7.5%) were mixed and allowed to stand for 2 h at room temperature. Light absorption was measured at 750 nm by a spectrophotometer UV-VIS against a blank similarly prepared, but containing distilled water instead of extract. The total phenolic content (Ye) was expressed in mg/ml.
Determination of tannin concentration
Total tannin content (g/l) was determined according to Ribérau-Gayonand collaborators.17 Total tannin assay is based on the heating process of tannins in acidic medium leading to the formation of cyanidins. Two tubes were prepared, each containing 1 ml of the sample, 0.5 ml of water and 1.5 ml of 12 N HCl. The first tube was mixed and heated in a water bath at 100°C for 30 min. The second was kept at room temperature. Following the rapid cooling, 0.25 ml of ethanol was added to the mixture and the resulting absorbance was recorded at 520 nm.
Free radical scavenging activity
The DPPH (1,1-diphenyl-2-picrylhydrazyl) radical was used in the present study for the screening of the radical scavenging activity of the extracts.18 The DPPH radical scavenging activity was measured using the spectrophotometer UV-VIS (Libra S32, Biochrom, France). The samples were tested at a concentration of 20 mg/ml then mixed with 1000 μl of 0.1 mMDPPH-ethanol solution and 450 μl of 50 mM Tris-HCl buffer (pH 7.4). Methanol (50 μl) was used for blank measurements in this experiment. After 30 min of incubation at room temperature, the reduction of the DPPH free radical was measured by reading the absorbance at 517 nm. Butylhydroxytoluene (BHT) (a synthetic antioxidant) was used as a positive control. The inhibition ratio (percent) was calculated according to the following equation:
Determination of total flavonoids (TF)
The total flavonoids (TF) assay was done aspreviously described by Zhuang and coworkers19 after bringingminor modifications. A volume of 1 ml of diluted extract or standard solution of catechin was placedin a 10 ml volumetric flask already containing 4 ml of H2O. Five minutes later, 0.3 ml of NaNO2 (5%) and 1.5 ml of AlCl3(2%) were added. The mixture was shaken for 5 min then 2 ml of 1 M solution of NaOH were added and the mixture was well shaken again. The absorbance was measured at 510 nm against the blank. The results were calculated according to the calibration curve for catechin (R2 = 0.99). The content of TF was expressed as mg of catechin equivalent (CE) per 1 g of dry matter content. All samples were analyzed in duplicate.
Disc diffusion test
For the preparation of bacterial suspension of each strain to be tested, 5 colonies were picked from fresh blood agar culture and inoculated onto 3 ml saline then left for 5 minutes. Each strain suspension was swabbed onto plates of Muller Hinton agar and 5 mm sterile filter paper discs were placed on top. Aqueous extract, Methanolic extracts (undiluted, diluted 1:1), Oil (crude, diluted 1:1 in ethylene glycol (EG) and diluted 1:1 in dimethyl sulfoxide (DMSO) and capsule content were tested for their inhibition effect on the strains. This was performed by pipetting 5 μl of all preparations on 5 mm sterile discs. Negative controls were included.After overnight incubation, the inhibition zones were recorded.20
Biofilm formation
An overnight broth culture of each bacterial strain (2 MRSA, 1 MRSE) tested were diluted 1:5 in tryptic soya broth. For each bacterial strain, fivesterile beakers containing a 2.5 cm coverslip were used, where 300 μl bacterial suspension was added. An equal volume of methanolic extract, crude oil, oil diluted in EG and capsule content, was added to each beaker, leaving one untreated to serve as a positive control. All beakers were incubated overnight at 37°C. Then, each beaker was washed 3x with distilled water, fixed with 95% of ethanol for 30 min and stained with 0.1% crystal violet for an hour. After a final wash, the coverslips were air-dried and microscopically visualized for biofilm formation.21
GC-MS Analysis
The GC-MS investigation of the Nigella sativa oil, capsule, methanolic and aqueous extracts have been made in an Agilent instrument (Agilent, Japan) under computer control at 70 eV. About 1 μl of each sample was injected into the GC-MS and the scanning has been done for 25 min. The oven temperature has been maintained at 100°C. Helium gas has been utilized as carrier and eluent. The helium flow rate has been set at 1 ml/min. HP-5MS capillary-column (30 m × 0.25 mm; 0.25 μm film-thickness) has been utilized as the GC-column for components separation. The identity and quantifying of the oil components have been assigned by the comparison of their retention indices and mass spectra fragmentation patterns with those stored on the computer library and the reference standards calibration curves.22
RESULTS AND DISCUSSION
Polyphenol, tannins and flavonoids content of different N. sativa preparations
Figure 1 shows that the highest concentration of total phenolic compounds and flavonoids were found in the capsules and oil followed by the methanolic and aqueous extracts. The amount of polyphenols in oil and capsules (248 mg/ ml) was higher than the one found in seeds extracts (21 mg/ml for the aqueous extract and 39 mg/ml for the methanolic extract). Similar results were obtained for the flavonoids with a concentration of 19.8 mg/ml for the oil and capsules followed by the methanolic (2.98 mg/ml) and the aqueous extract (0.11 mg/ml). However, for the tannins, the highest amount (8.3 mg/ml) was noted for the capsules, followed by the oil (3.4 mg/ml), and methanolic extract (1.5 mg/ml) while the aqueous extract contains only 0.49 mg/ml. These results are in accordance with a study by Cheikh-Rouhou et al., 200723 which showed that N. sativa oil is a potential source of natural phenolic compounds.
Antiradical activity of N. sativa Extracts against DPPH radical
The assessment of the antiradical activity of the aqueous and methanolic extracts, oil and capsules was also performed (Figure 2). DPPH is a stable radical, widely used to evaluate the free radical scavenging activity in many plant extracts.24 The assessment of antiradical activity showed that all N. sativa preparations were able to scavenge this radical. Oil and capsules displayed a higher activity, 16% and 17% inhibition of the radical, respectively. Whereas, methanolic and aqueous extracts exhibited a lower antiradical activity (12% and 7%). The high antiradical activity of the oil and capsules could be mainly attributed to their high phenolic content that act as a free radical scavenger.25 found that antiradical activity of N. sativa extracts increased proportionally to the polyphenol content with a linear relationship between radical inhibition and total polyphenols. Similar studies by26,27,28 showed concentration-dependent radical scavenging activity of polyphenol extracts.
Antibacterial activity of Nigella sativa preparations
The aqueous extract, methanolic extracts (undiluted, diluted 1:1), oil extracts (crude oil, oil in ethylene glycol 1:1, oil in DMSO 1:1) and capsule content of different N. sativa samples were evaluated for their antibacterial activities against different resistant gram-positive and gram-negative bacterial strains using the disc diffusion method by measuring the inhibition zone (Table 1). As shown in Table 1 the aqueous extract did not exhibit any antibacterial activity. However, the other preparations showed antibacterial activities with different efficacy. These results are in agreement with a study by,29 which reported lower antibacterial activity for the aqueous extract of high phenolic content plant like rosemary compared to its methanolic extract. The inhibitory effect for the different extracts is higher for the gram-positive strains than for the gram-negative strains. Our findings are in concordance with the findings of30 which showed that phenolic compounds have enhanced activity against gram-positive strains compared to gram-negative, due to the presence of an outer membrane in the cell wall of the latter, thus acting as permeability barrier and reducing the uptake of polyphenols.31 The capsules showed the highest inhibitory activity against the different tested gram-positive strains. The extracts in pure methanol showed inhibitory activity against the different tested gram-positive and gram-negative strains. Other extracts (diluted methanol, oils (crude and diluted)) were found to be active against all the tested species of gram-positive bacteria whereas the gram-negative bacteria remained unaffected. Our results are in accordance with the study by,32 that showed that methanolic extracts were more effective against both gram-positive and gram-negative bacteria tested, which could be explained by a better extraction of phenolic and flavonoid components at alcoholic concentration of 500 mg/ml. The extracts diluted in methanol showed as well an antibacterial activity but lower than in pure methanol. The crude oil and the diluted ones showed an antibacterial activity. However, the crude oil demonstrated better results than the diluted one. Capsules showed the best effect with the highest inhibition zone suggesting that the antibacterial efficacy of N. sativa preparations is associated with their high bioactive contents. Those results are is in good agreement with previous studies by,33\u03b1-thujene (5.6% reporting that the essential oils like thymoquinone are responsible for the strong antimicrobial activity of N. sativa oil33\u03b1-thujene (5.6%. However, there is increasing amount of evidence that the activity of N. sativa oils may not rely exclusively on the main active components present, but also on the interactions between those components and other constituents in the oil.
Figure 1
Amount of total phenolic compounds (a), total flavonoids (b) and tannins (c) of the different Nigella sativa preparations (aqueous extract, methanolic extract, oil and capsules). The results are given as means ± SD of three measurements (d).

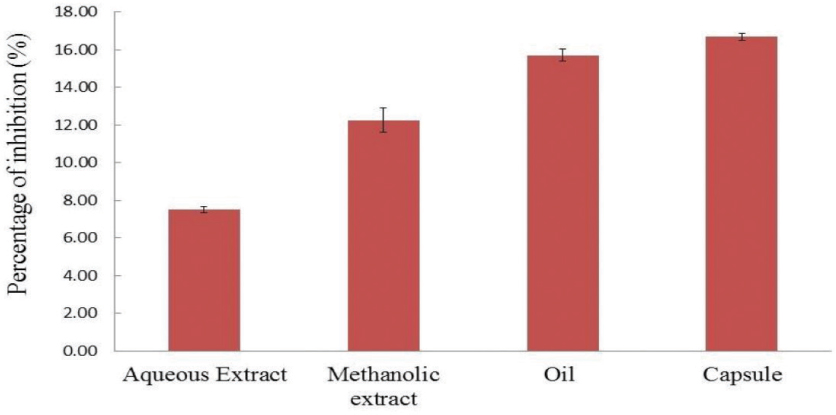

Figure 2
Radical scavenging capacity of Nigella sativa preparations (aqueous, methanolic, oil and capsules) against DPPH radical.
Table 1
Inhibition zone of the different Nigella sativa preparations against different bacterial strains (gram + and gram -)
Figure 3
Microscopic visualization of the effect of Nigella sativa preparations (M for Methanolic extract; O for crude oil, EG for oil diluted in Ethylene Glycol, and C for Capsules) on three biofilm positive strains MRSA 1294, MRSA 1295 and MRSE 1297 cultured on glass slides covers.
Figure 4
GC-MS analysis of Nigella sativa preparations:(A) Oil (B) Capsule (C) Methanolic extract (D) Aqueous extract.
Table 2
Chemical compositions of N. sativa preparations:oil, capsule, methanolic and aqueous extracts major peaks
Effect of Nigella sativa extracts on biofilm formation on glass microscope slide covers
N. sativa preparations were tested for their potential to prevent biofilm formation of three gram-positive resistant bacterial stains (MRSA 1294, MRSA 1295 and MRSE 1297). Prevention of biofilm formation by methanolic extracts, crude oil, oil diluted in EG and capsule content was shown by microscopic visualization. N. sativa preparations reduced the biofilm formation of all bacterial strains tested compared to the positive controls (non-treated bacteria, Figure 3a, b, c). A moderate biofilm formation reduction was noted for the methanolic extracts and oil diluted in EG. Whereas, the highest suppression of biofilm formation was observed for crude oil and capsule content. Our results are in accordance with the study of21 who showed that thymoquinone, an active principle of N. sativa is able to prevent bacterial biofilm formation. Toconfirm this, we performed GC-MS analysis of the different preparations.
GC-MS Analysis
N. sativa oil GC-chromatogram has shown the presence of 9 major peaks (Figure 4A), and the components corresponding to the peaks have been determined: Beta-Pinene (9.1%), O-Cymene (8.7%), Thymoquinone (7.8%), Palmitic acid (5.0%), Oleic acid (7.2%), Linoleic acid (9.5%), 9,12-Octadecadieneoic acid (Z-Z)-, methyl ester (7.1%), 1-Heptatriacotanol (6.9%), and Thymol (9.4%) (Table 2). Moreover, N. sativa capsule GC-chromatogram has shown the presence of 5 major peaks (Figure 4B), and the components corresponding to the peaks have been determined: Beta-Pinene (10.0%), Thymoquinone (8.6%), Palmitic acid (5.6%), Oleic acid (8.1%), and Thymol (10.3%) (Table 2). Furthermore, N. sativa methanolic extract GC-chromatogram has shown the presence of 2 major peaks (Figure 4C), and the components corresponding to the peaks have been determined: Thymoquinone (3.7%) and Thymol (6.4%) (Table 2). Nevertheless, N. sativa aqueous extract GC-chromatogram has shown the presence of one major peak, Thymoquinone (6.9%) (Table 2). As shown in Table II, Thymoquinone is the common bioactive component of all N. sativa preparations, which is in agreement with the literature34 and Beta-Pinene is the major constituent of N. sativa oil. Our results are quite different from the work of 35 who reported that p-cymene (37.3%) and thymoquinone (13.7%) were the major components of N. sativa oil.36 also reported that N. sativa oil contains p-cymene as the major component. Our results show that the oil and the capsule contain considerable amounts of bioactive compounds (Beta-Pinene, Thymoquinone, thymol and Oleic acid). However, these compounds were absent in N. sativa methanolic and aqueous extracts, and hence the antiradical and antimicrobial activities of the oil and capsule could be attributed to the complex interactions between the individual components.
CONCLUSION
In this work, we proposed the use of N. sativa preparations as a potential source for antiradical and antibacterial activities. All N. sativa preparations have shown the ability to act as antioxidants by free radical inhibition, with the oil and capsules content showing the higher activity. N. sativa was also assessed for its antibacterial activity against highly resistant gram-positive and gram-negative bacteria. Generally, all preparations were strongly active against bacterial growth and biofilm formation for gram-positive bacteria. N. sativa capsule and oil were found to present the highest antibacterial activity, mainly attributed to their rich bioactive components. Therefore, N. sativa preparations can be suggested as a useful alternative for some infectious diseases, such as a decolonizing agent for gram-positive bacteria if it is incorporated in a local ointment as well as natural preservatives in food industry.
SUMMARY
In this study, total phenolic content, tannin, and flavonoid content of N. sativa seed extracts and its commercially available oil were determined. Their radical scavenging activity using DPPH method was also tested. The antibacterial activity of N. sativa seed extracts and its oil against different multidrug resistant gram-positive and gram-negative bacterial strains was studied using disc diffusion test and the biofilm formation assay. Gas chromatographic–mass spectrometric studies were also performed to describe the essential oil and fixed oil (fatty acid) composition of the different N. sativa preparations.
