Pharmacognostic evaluation of Desmodium oojeinense (Roxb.) H. Ohashi - Stem bark

Nirawane, Gurav, Rao, Mangal1, and Narayanam1: Pharmacognostic evaluation of Desmodium oojeinense (Roxb.) H. Ohashi - Stem bark

Authors

1. Introduction

Desmodium oojeinense (Roxb.) H.Ohashi, (Syn. Ougeinia oojeinensis (Roxb.) Hochr.)is a tree belonging to family Fabaceae. It is native of India and also found in Nepal. Bark is astringent, acrid, cooling, sadorrific, depurative, stypic and rejuvenating[1]. Bark is reported to posseses antiinflamatory[2], antispasmodic[3], hypoglycemic and hypolipidemic activity and useful in the management of diabetes[4-6]. It is used to treat diarrhoea, dysentery and used as fish poison and febrifuge[7-10]. It is also useful in anaemia, leucoderma, ulcer and biliousness[10]. Methanolic extract of bark contains alkaloids, terpenoids, flavonoids, glycosides, tannins, saponins, proteins and carbohydrates.[11]

Pharmacognostic and phyto chemical evaluation of bark has been reported[12] but the detailed study was needed to standardize the bark drug as per the standards laid down by Ayurvedic Pharmacopoeaia of India and guidelines provided by WHO for medicinal plants.

2. Materials and methods

2.1 Plant material

Stem bark and flowering twigs of D. oojeinense were collected from the plant growing in the campus of Abasaheb Garware, Art and Science College, Pune, Maharashtra, India.

2.2 Identification and authentication of plant material

Plant material was identified and authenticated with the help of the Flora[13]. Plant material was also compared with the herbarium speciemen available in the Botanical Survey of India, Western Circle, Pune.

2.3 Preparation of herbarium

Herbarium of the plant speciemen were prepared and deposited in the herbarium section of the RAIFR, Pune with voucher speciemen number 4526/2014[14].

2.4 Preservation of wet sample

Freshly collected and thoroughly washed bark pieces were kept in a glass bottle containing a mixture of formalin: glacial acetic acid: 70% ethyl alcohol [10:5:85][15].

2.5 Powder preparation

Shade dried, stem bark pieces were made in to powder using grinding mill; passed through #60 sieve and kept in airtight container for further analysis.

2.6 Macroscopic characterization

Macroscopic characters like fracture, shape, size,colour, taste, odour of bark and powder were determined by naked eyes[16].

2.7 Microscopic characterization

Free hand transverse sections (TS) of bark were taken and stained with Safranin and Phloroglucinol, followed by Hydrochloric acid. Micro photographs were snapped with the help of Deno Capture 2.0 version 1.4.2.D, the versetile digital microscope[16].

2.8 Histochemical and fluorescense analysis

Dried bark powder was used for the analysis of histochemical, physico-chemical aspects such as behaviour of powder, fluorescense analysis[17].

2.9 Determination of physicochemical parameters

Physicochemical parameters namely, loss on drying, ash value, acid insoluble ash, water soluble ash, water soluble extractive, alcohol soluble extractive were performed as per the standard procedures[18].

2.10 Preliminary qualitative analysis

Preliminary qualitative tests were performed by following standard methods[16].

2.11 Thin layer chromatography

Thin layer chromatography of aqueous and methanolic extract of D. oojeinense - stem bark was developed using solvent system toluene: ethyl acetate: acetic acid: methanol (5:3:1:1) which was saturated for 45 minute in CAMAG twin trough chamber. Both extractswere applied manually on TLC Silica gel 60 F254 Aluminum coated plate and run up to 8 cm. Plates were observed under day light, ultra violet light at 254 nm and 366nm and subsequently derivatized with Iodine vapour and anisaldehyde-sulphuric acid. Developed band colours and retention factor (Rf) were recorded. Photo documentation was done with the help of digital SLR Canon camera.

Figure 1

Macroscopic features of Desmodium oojeinense stem bark

https://s3-us-west-2.amazonaws.com/jourdata/jams/3_Nirawane_et_al_10.5530jams.2017.2.33-g001.jpg

3. Results and discussion

3.1 Organoleptic Character of Powder

Stem bark powder is light brown in colour, coarse, fibrous, odourless, initially slightly sweet and then slightly astringent.

3.2 Macroscopy

Mature pieces of bark are flat or slightly curved in shape, 5 to 6 cm in length, 2 to 2.5 cm in width and 4 to 8 mm in thickness. Outer surface of bark is powdery, slightly rough, and creamy to light brown in colour. There are small patches, oozing brown resin. Powdery layer alternating with rough surface transversely up to rhytidome; occasionally longitudinally cracked. Inner surface rough, yellowish brown, due to oozing of resin, splintery fractured (Figure 1).

3.3 Microscopy

Diagrammatically,transverse section of bark showed a rhytidome outside which occupies half area of entire bark with scattered groups of fibres, resin ducts and biseriate medullary rays. Rhytidome alternating with lignified irregular cells of powdery layer followed by cork. The innermost layer is phloem traverse with groups of fibres, resin duct, biseriate medullary rays and patches of compressed phloem (Figure 2.1).

Detailed T.S. of bark shows outer region of rhytidome composed of 6 to 7 rows of rectangular cells of cork, followed by 2 to 3 rows of groups of stone cells and sclerides. Pentagonal, hexagonal or polygonal cells of rhytidome traverse with groups of thin walled fibres, compressed phloem, groups of empty resin duct and biseriate medullary rays. Parenchymatous cells and medullary rays embedded with starch grains and prismatic crystals of calcium oxalate. Rhytidome alternating with 6 to 8 layers of irregular, lignified cells of powdery layer, followed by 6-7 layers of rectangular cells of cork. Below this group 2-5 layers of of stone cells were observed. Secondary phloem made up of somewhat polygonal to oval shaped cells traverse with groups of thin walled fibres, groups of resin duct, compressed cells of phloem and biseriate medullary rays. Phloem parenchyma and medullary rays embedded with simple, compound, oval starch grains and prismatic crystals of calcium oxalate (Figure 2.2 and 3).

3.4 Powder Microscopy

Powder under microscope showed different anatomical characters. Details of characters recorded are given in Figure 2.3 and 4.

3.5 Histochemical and fluorescense analysis

Powder drug was analysed for histochemical tests for detection of lignin, aleurone grains, oils, mucilage and crystals. Analysis revealed that bark contains lignin, resins, oils, starch and calcium oxalate crystals which are the unique characters of bark (Table 1).

Powder drug was treated with different chemical reagents and observed in day light and ultra-violet light and inferences was recorded in Table 2. Drug colour changed after reacting with chemical and observed under 254 and 366 nm which is would be characteristics for particular drug and would be beneficial to identify the bark of D. oojeinense.

Behaviour of drug with different chemical reagent showed that drug immidiately move down in Glacial acetic acid, 5% FeCl3 solutions whereas powder colour changed in concentrated H2SO4, HNO3 and HCl solutions. Details of observations are exhibited in Table 3.

3.6 Determination of physicochemical parameters

Results obtained from physico- chemical parameters such as, loss on drying, total ash, acid insoluble ash, water soluble ash, water and alcohol soluble extracts are depicted in Table 4.

3.7 Preliminary qualitative analysis

Preliminary analysis revealed that bark contain, carbohydrates, saponins, anthroquinone, glycoside, tanins, phenol and organic acids. Details of the result given in Table 5.

3.8 Thin layer chromatography

TLC of methanolic extract developed 7 spots in 254 nm, 1 spot in 366 nm, 8 spot in anisaldehyde-sulphuric acid and 12 spots in Iodine. Whereas, single spot developed in aqueous extract at 0.72 Rf observed in 254 nm, and after derivatized with anisaldehyde-sulphuric acid and Iodine. Details are shown in Table 6 & 7 and Figure 5.

Table 1

Histo-chemical analysis of Desmodium oojeinense stem bark

TestChemicalObservationResult
Lignified cell wallsPhloroglucinol + HClPink to cherry red colour+
Cuticular cell wallsSudan red -IIIOrange red or red-
Aleurone grainsIodineYellowish brown to brown-
Fats, fatty oils, volatile oils and resinsSudan red- IIIOrange red to red+
MucilageRuthenium redPink-
StarchIodineBlue or reddish blue+
Calcium oxalate crystalsHydrochloric acidDissolved+
Calcium carbonate crystalsHydrochloric acidDissolved with effervescence-
Table 2

Fluorescence analysis of Desmodium oojeinense stem bark

TestDay light254nm366nm
Powder as suchFawnFawnBrown
Powder + H2OUmberGreyish sepiaOlivaceous
Powder + HClSepiaDark mouse greyFuscous Black
Powder + HNO3SepiaIsabellineFuscous Black
Powder + H2SO4Dark brownBlackGreenish Black
Powder + Glacial Acetic acidDark brickBrown vinaceousChestnut
Powder +50 % HClBrownChestnutSepia
Powder +50% HNO3BrownChestnutSepia
Powder +50% H2SO4BrownChestnutFuscous Black
Powder +50% G. Acetic acidReddish BrownDark mouse greyFuscous Black
Powder + 1N NaOHDark BrownDark mouse greyFuscous Black
Powder +1N KOHDark BrownDark mouse greyFuscous Black
Powder +5 % IodineReddish BrownBrownFuscous Black
Powder +5 % FeCl3OlivaceousIsabellineDark libid
Powder + Liquid NH3Dark brickDark mouse greyFuscous Black

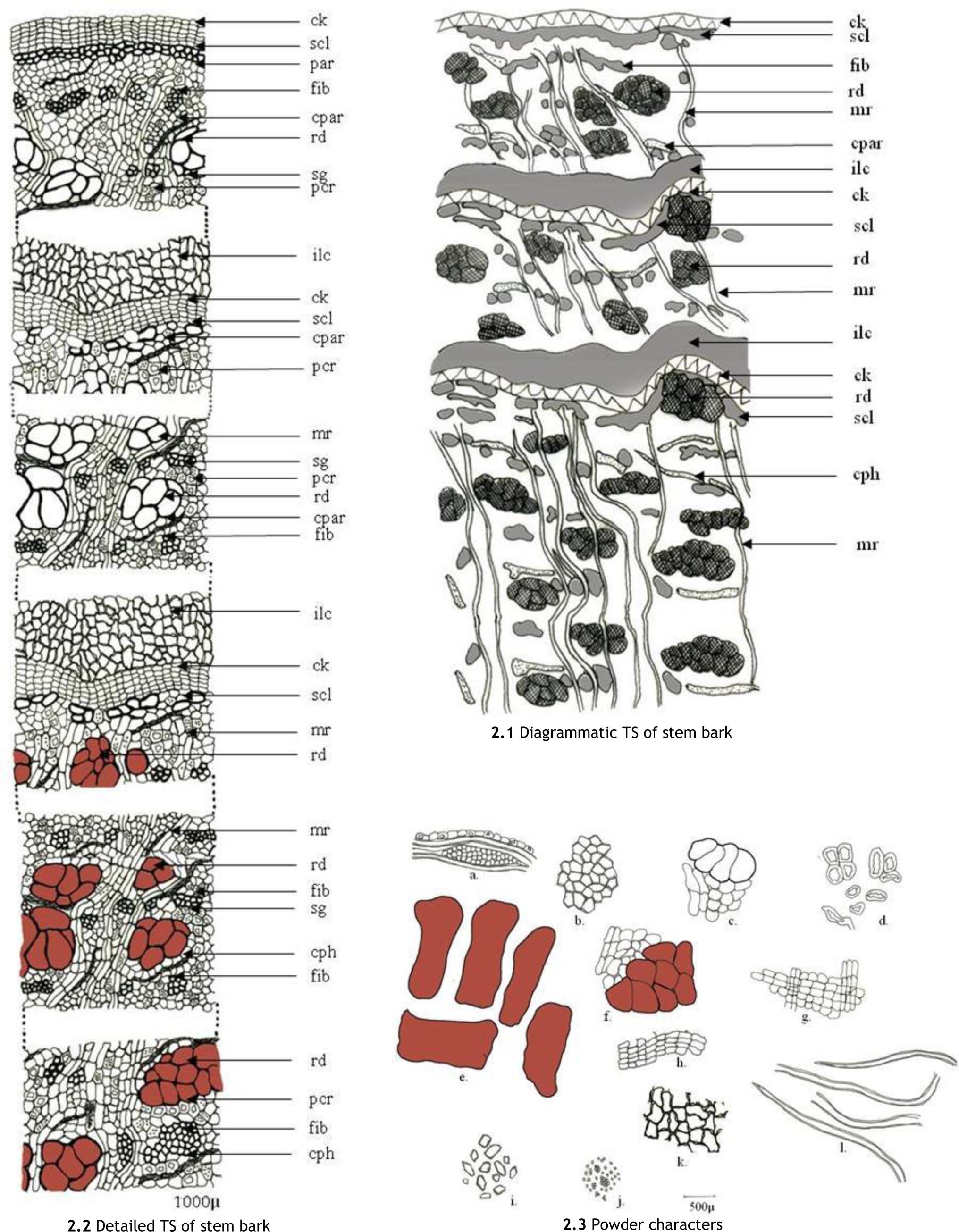

Figure 2

Camera lucida drawings of Desmodium oojeinense stem bark

a. Fragment of radially cut medullary rays with prismatic crystals of calcium oxalate, b. fragment of cork cells in surface view, c. transversally cut fragment of phloem with resin cells, d. stone cells and sclerieds, e. isolated resin cells, f. transversally cut fragment of rhytidoma with resin cells, g. fragment of tangential cut medullary rays, h. fragment of cork cells in sectional view, i. prismatic crystals of calcium oxalate, j. simple, compound, oval starch grains, k. fragment of irregular lignified cells of powdery layer, l. thin walled, simple, sharp fibres.

ck- cork; cpar- compressed parenchyma; cph- compressed phloem; fib- fibres; ilc- irregular lignified cells; mr- medullary rays; par- parenchyma; pcr- prismatic crystals of calcium oxalate; rd- resin duct; scl- sclerenchyma; sg- starch grains.

https://s3-us-west-2.amazonaws.com/jourdata/jams/3_Nirawane_et_al_10.5530jams.2017.2.33-g002.jpg
Table 3

Behaviour of Desmodium oojeinense stem bark powder with different chemical reagents

TestObservations
Conc. H2SO4a) Powder floats on surface.
b) On shaking powder move down up to 1.5 cm and remains suspended.
c) Powder colour changed from brown to dark brown.
Conc. HNO3a) Powder floats on surface.
b) On shaking few particles move down slowly and majority of particles remains suspended.
c) Powder colour changed from brown to yellowish orange.
Conc. HCla) Powder Floats on surface.
b) Few particles slowly move down.
c) On shaking majority of particles move down and remain suspended and few settled down.
d) Powder colour changed from brown to dark brown
Glacial Acetic acida) Powder immediately moves down.
b) No colour change in powder
5% I2 watera) Powder floats on surface.
b) On shaking few particles settled down and few remain suspended and solution became turbid.
5% FeCl3a) Powder immediately settled down.
b) Colour changed from brown to black.
5% NaOHa) Powder floats on surface.
b) Few particles move down.
c) On shaking particles move down and settled at the bottom; few remains suspended and no change in colour.
5% KOHa) Powder floats on surface.
b) Few particles moves down.
c) On shaking particles moves down fastly and settled down at bottom and few remains suspended and no change in colour.
Table 4

Physico-chemical constants of Desmodium oojeinense stem bark

ParameterResult (%)
Loss on drying10.98
Total Ash16.57
Acid insoluble ash0.06
Water soluble ash2.12
Water soluble extractive26.43
Alcohol soluble extractive10.13
Figure 3

Microscopic features of of Desmodium oojeinense stem bark

https://s3-us-west-2.amazonaws.com/jourdata/jams/3_Nirawane_et_al_10.5530jams.2017.2.33-g003.jpg
Figure 4

Powder microscopy of of Desmodium oojeinense stem bark

https://s3-us-west-2.amazonaws.com/jourdata/jams/3_Nirawane_et_al_10.5530jams.2017.2.33-g004.jpg
Table 5

Preliminary qualitative analysis of Desmodium oojeinense stem bark

Phyto-constituentTests PerformedExtracts
AqueousMethanolic
CarbohydratesMolish’s test+--
Reducing sugara) Fehling’s test++
b) Benedict’s test++
Pentose sugarPhloroglucinol Reag. test++
Hexose sugara)Tollen’s Phloroglucinol test++
b)Cobalt Chloride test++
Proteina) Biuret test__
Amino acida)Ninhydrin test__
b)Test for cysteine__
Steroidsa)Libermann-Burchard test__
b)Salkowaski reaction__
GlycosideGeneral test__
Cardiac Glycosidesa) Legal test__
b) Keller-Killiani test__
Anthroquinone Glycosidea)Borntrager’s test_+
b) Modified Borntrager’s test_+
Saponinsa)Foam test+--
b) Lead Acetate solution test+--
Coumarin Glycosidea)Aromatic odour test__
b) Fluorescence test--_
Flavonoidsa) Shinoda test--_
b) Lead acetate test_--
Alkaloidsa) Dragendorff’s test__
b) Mayer’s test__
c) Wagner’s test__
Taninsa) Lead acetate solution test+--
b) Gelatine sol. test_--
Phenola) Neutral Fecl3test--+
b) Indophenol reaction__
StarchIodine test__
Organic acids*Oxalic acid (In NH4OH Extrat)+

-- not performed

* extracted with NH4OH

_ absent

+ present

Table 6

Thin layer chromatography of methanolic extract of Desmodium oojeinense stem bark

254 nm366 nmAnisaldehyde sulphuric acidIodine
RfBand colourRfBand colourRfBand colourRfBand colour
----0.04Green--
------0.06Brownish yellow
----0.11Yellowish brown0.12Brownish yellow
0.15Black------
----0.19Brown--
0.21Black----0.21Yellow
----0.31Faint Navy blue--
------0.34Yellow
0.36Black----0.37Yellow
0.40Black------
------0.60Brownish yellow
0.62Black------
----0.71Navy blue0.71Yellow
0.74Black--0.74Navy blue0.74Brownish yellow
----0.79Purple0.78Brownish yellow
----0.85Purple0.85Brownish yellow
--0.89Light blue--0.89Brownish yellow
0.92Black------
------0.97Brownish yellow
Table 7

Thin layer chromatography of aqueous extract of Desmodium oojeinense stem bark

254 nm366 nmAnisaldehyde sulphuric acidIodine
Rf valueBand colourRf valueBand colourRf valueBand colourRf valueBand colour
0.72Black--0.72Navy blue0.72Brownish yellow
Figure 5

TLC profile of Desmodium oojeinense stem bark

W - aqueous extract; M - Methanol extract

https://s3-us-west-2.amazonaws.com/jourdata/jams/3_Nirawane_et_al_10.5530jams.2017.2.33-g005.jpg

4. CONCLUSION

The results of this studies would be useful for identification, authentication and standardization of stem bark of Desmodium oojeinense (Roxb.) H. ohashi and also to detect the spurious adulteration in the genuine drug.

PICTORIAL ABSTRACT

https://s3-us-west-2.amazonaws.com/jourdata/jams/3_Nirawane_et_al_10.5530jams.2017.2.33-g006.jpg

ACKNOWLEDGEMENTS

Authors are thankful to Prof. Sharyu Sathe, Head of Department of Botany, Abasaheb Garware Arts and Science College, Pune for allowing to use genuine stem bark from their Botanical Garden.

Notes

[5] Financial disclosure SOURCE OF SUPPORT

Nil

[6] Conflicts of interest CONFLICT OF INTEREST Authors declare no conflict of Interest

[7] Contributed by CONTRIBUTORS

Mrs. Rekha B Nirawane performed all experimental work in pharmacognosy, phytochemical parameter, Camera lucida drawings, TLC and any other laboratory work. Dr Arun M Gurav contributed to the planning and execution of research work, literature survey for article, drafting and finalization of article as per the format. Dr. Gajendra Rao contributed to vetting and suggestions on drafting. Dr. Anupam K Mangal and Dr. N Shrikanth edited the manuscript contents to acceptable form.

REFERENCES

1.

Joy PP, Thomas J, Mathew S, Skaria BP , authors. Medicinal Plants. Kerala: Kerala Agricultural University. 1998;195

2.

Madrekar M, Desai V, Joshi M, Sardesai Y, Joshi A , authors. Antimicrobial Activity of Ethanolic extract of stem bark of Ougeinia oojeinensis (Roxb.) Hochr. World Journal of Pharmaceutical Research. 2014;(3)(5):613–622

3.

Khare CP , author. Encyclopedia of Indian Medicinal Plants. New York: Springer, USA: 2004. p. 343

4.

Irchhaiya R, Kumar A, Gupta N, Yadav A, Kumar S, Gupta N, Kumar S, Gurjar H , authors. Review on Medicinal Plants with Antidibetic and Analgesic activity. World Journal of Pharmacy and Pharmaceutical Sciences. 2014;3(11):163–196

5.

Konda VGR, Madhavi E, Rukmini A, Venkataramana Y , authors. A review on Medicinal plants with potential Hypolipidemic activity. International Journal of Pharma and Bio Sciences. 2013;4(4):729–740

6.

Pullaiah T, Naidu KC , authors. >Antidiabetic Plants in India and Herbal based Antidiabetic Research. New Delhi: Regency Publication; 2003. p. 241

7.

Anonymous. The Wealth of India: Raw Materials. Vol. VII. N-Pe New Delhi: Publication and Information Directorate, CSIR; 1966. p. 195–197

8.

Mabbeley DJ , author. Mabberley’s Plant Book- A Portable Dictionary of Plant, their Classifications and Uses. Cambridge: Cambridge University Press, UK; 2008. p. 616

9.

Khare CP , author. Indian Medicinal Plant: An Illustrated Dictionary. New York: Springer, USA: 2007. p. 456

10.

Nadakarni AK , author. Indian Materia Medica. 1. 3rd. Mumbai: Bombay Popular Prakashan; 1999. p. 432

11.

Wankhade MS, Mulani RM , authors. Chromatography finger profiling and phytochemical investigation on leaf and bark methanolic extract Ougeinia oojeinensis (Roxb.) Hochr. International Journal of Current Research. 2015;7(2):12668–12673

12.

Gunasekaran R, Usha M, Arunachalum G , authors. Pharmacognostical and Phytochemical Evaluation of Ougeinia oojeinensis (Roxb.) Hochr. Bark. International Journal of Pharmaceutical Sciences and Research. 2011;2(3):706–712

13.

Singh NP, Karthikeyan S , authors. Flora of Maharashtra state (Dicotyledones). 1. Calcatta: Batanical Survey of India; 2000. p. 727

14.

Rao RR, Sharma BD , authors. A Manual For Herbarium Collections. Calcutta: Botanical Survey of India; 1990. p. 5–19

15.

Johnsen DA , author. Plant Micro Techniques. New York: McGrow Hill Book Company, London; 1940. p. 105

16.

Khandelwal KR , author. Practical Pharmacognosy- Techniques and Experiments. Pune: Nirali Prakashan; 2003

17.

Gayathri V, Kiruba D , authors. Fluorescence Analysis of Two Medicinal Plants – Psidium guajava L and Citrus aurantium. International Journal of Pharmaceutical Sciences and Research. 2015;6(3):1279–1282

18.

Anonymous. Quality Control Methods for Medicinal Plants Materials (Geneva). World Health organization. 1998;45–46
